Power Iron Silicon Aluminum Inductor
Scope of application：wave filtering
type：Magnetic loop inductance
brand：Gold-Stone
model：Full range
Packaging form：Plug in inductance
Winding form：Single layer wound type
Properties of magnetic conductor:Iron silicon aluminum
Description

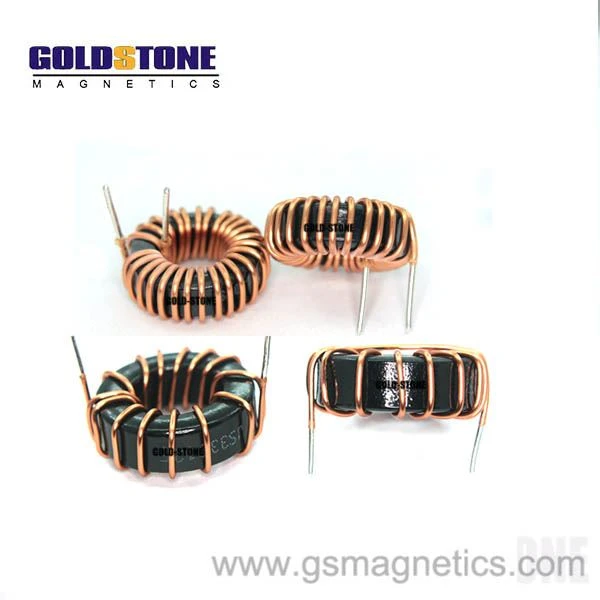

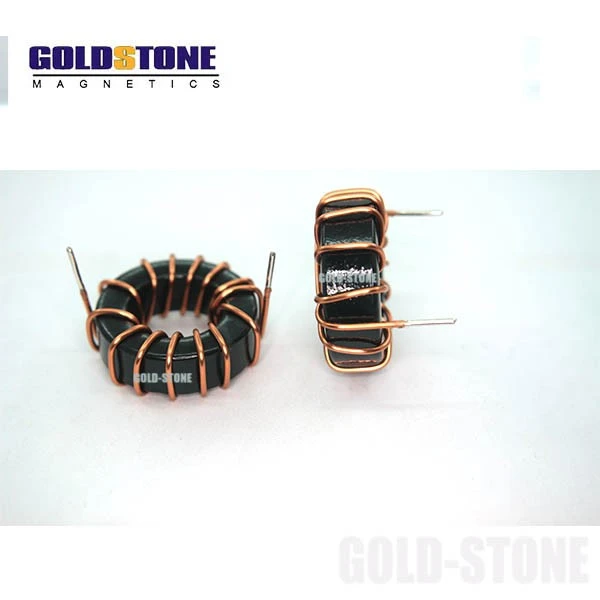

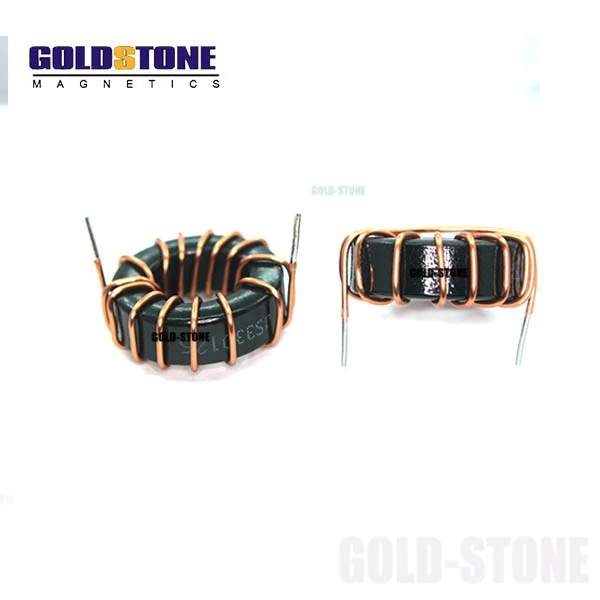

Power Iron Silicon Aluminum Inductor
It has excellent magnetic properties, low power loss, high magnetic flux density, and high reliability such as temperature resistance, humidity resistance, and vibration resistance when used in the temperature range of - 55C~+125C; At the same time, a wide permeability range of 60~160 is available. It is the best choice for switching power supply output chokes, PFC inductors and resonant inductors, with good performance price ratio.
Scope of application：wave filtering type：Magnetic loop inductance brand：Gold-Stone model：Full range Packaging form：Plug in inductance Winding form：Single layer wound type Properties of magnetic conductor: Iron silicon aluminum |
working frequency:high frequency Installation method:Vertical unsealed Skeleton material:other Quality factor Q：twenty Inductance：1-1000uH Tollerence：20% Inductive reactance XL:1-1000m（Ω） |

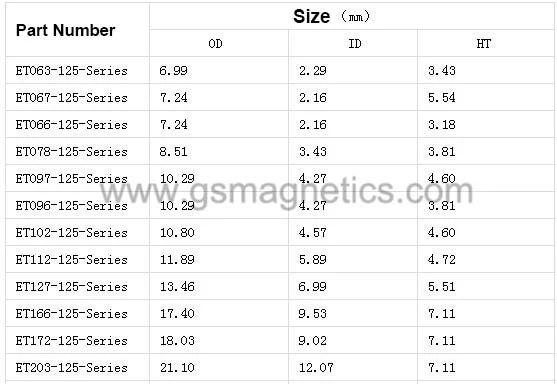

Datasheet
remarks:
Special requirements can be customized
Wire winding skills for reducing EMI of iron silicon aluminum magnetic ring
Wire winding skills for reducing EMI of Power Iron Silicon Aluminum Inductor
The stray capacitance on the inductor shall be reduced as far as possible, and the effective frequency range of the inductor shall be widened. The stray capacitance in the inductance comes from two aspects, one is the capacitance between the windings, and the other is the capacitance between the windings and the magnetic core. The inter turn capacitance is related to the winding method and turns of the coil, and the capacitance between the winding wire and the magnetic core is related to the magnetic core material
Guarantee Quality
1. Professional testing team, tester, comprehensive testing from raw materials to production process
2. Strictly follow the requirements of ISO quality system certification to control product performance and reliability
3. Introduce traceability control procedure, identify products in the whole process, and realize product traceability
4. Five quality inspection procedures to ensure that the ex factory pass rate of products is more than 99%
Industry prospect
Application of the iron silicon aluminum magnetic ring inductance:
1 power inductance, such as computer motherboard;
2 power factor correction, such as power supply;
3 common mode filtering, such as mobile phone charger;
4 current regulation, such as lighting variable voltage dimmer;
5 choke, such as uninterruptible power supply (UPS);
6 choke coil, such as control board of various household appliances;
7 differential mode filtering, such as strong industrial board;
8 choke coil, such as speed regulating motor control equipment

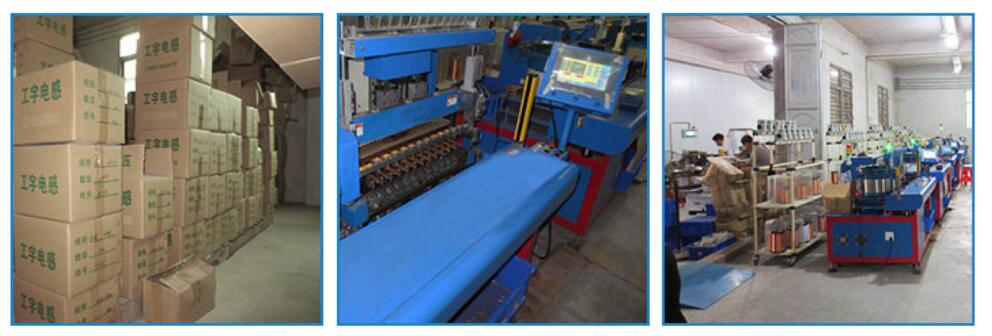

Factory display
Hundreds of fully automatic equipment
More than ten years of work experience
