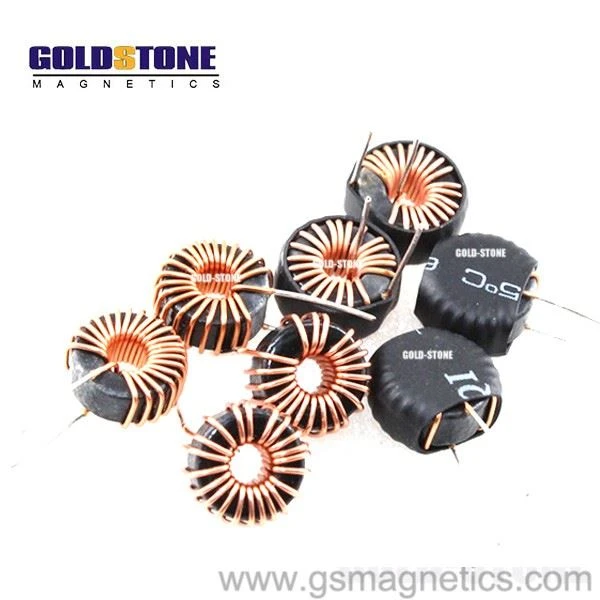

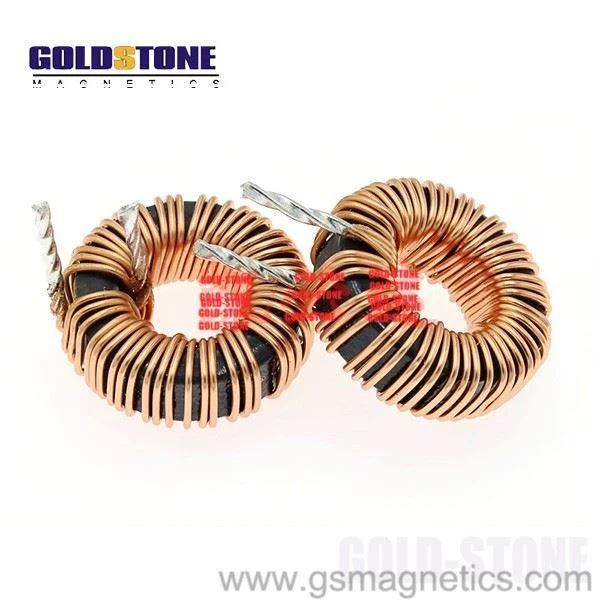

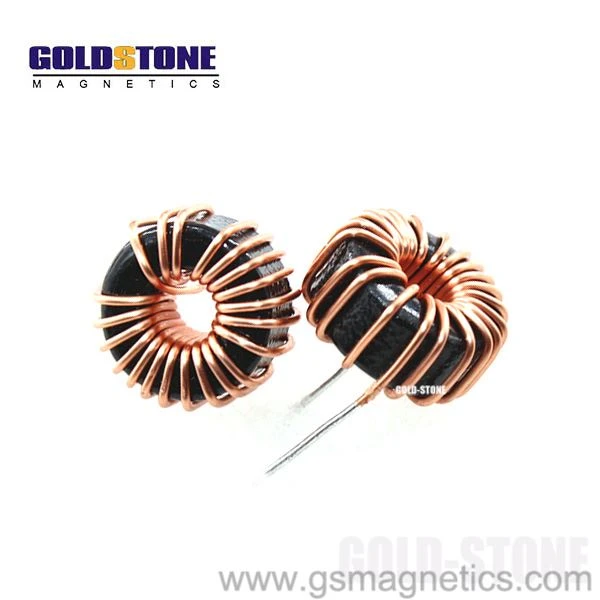

Iron Silicon Aluminum Magnetic Ring Inductor

The standard composition of iron silicon aluminum magnetic ring inductor is: al5.4%; Si9.6%； The rest is iron.
The Curie temperature of the iron silicon aluminum magnetic ring inductor is above 410 degrees, and the working temperature can range from - 50 ~ + 200 degrees
The iron silicon aluminum magnetic ring inductor has good current superposition performance, low iron loss and negative temperature coefficient 4 the initial permeability of the iron silicon aluminum magnetic ring inductor μ I
There are the following gears: μе 26； μе 60； μе 75； μе 90； μе 125, etc. Inductance coefficient AL inductance coefficient is the self inductance generated by each turn of coil on the core, that is, in the formula, l is the self inductance of the core coil (unit: H), and N is the number of coil turns. 5 the saturation magnetic induction strength BS of the iron silicon aluminum magnetic ring inductor is 800-1000mt. Saturation magnetic induction BS refers to magnetizing a magnetic substance with a sufficient magnetic field strength at the working temperature (25 ℃ or 100 ℃)

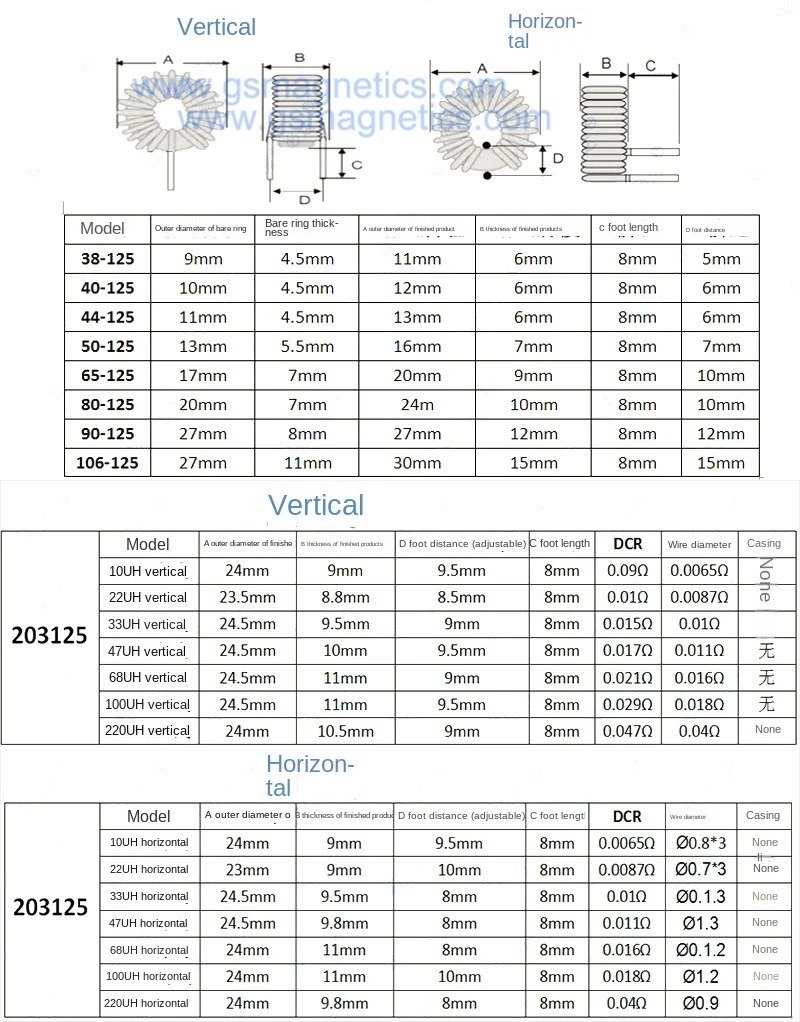

Datasheet

Industry prospect

Application of the iron  silicon aluminum magnetic ring inductance:
1 power inductance, such as computer motherboard;
2 power factor correction, such as power supply;
3 common mode filtering, such as mobile phone charger;
4 current regulation, such as lighting variable voltage dimmer;
5 choke, such as uninterruptible power supply (UPS);
6 choke coil, such as control board of various household appliances;
7 differential mode filtering, such as strong industrial board;
8 choke coil, such as speed regulating motor control equipment

Factory display

If you have special customized requirements, you can send us an email
