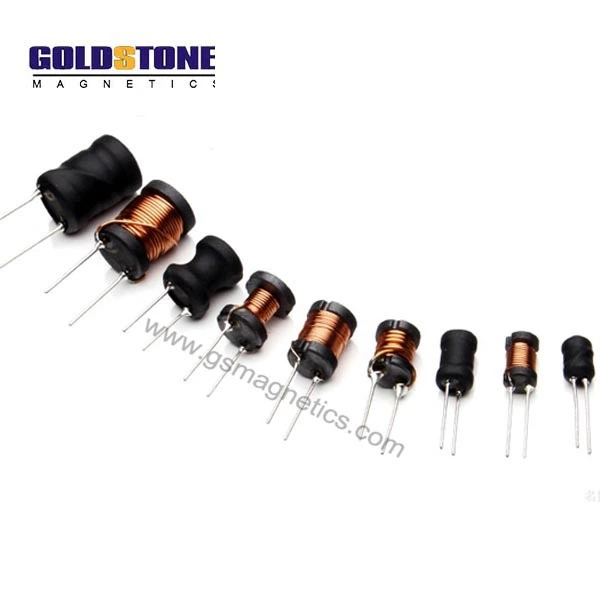

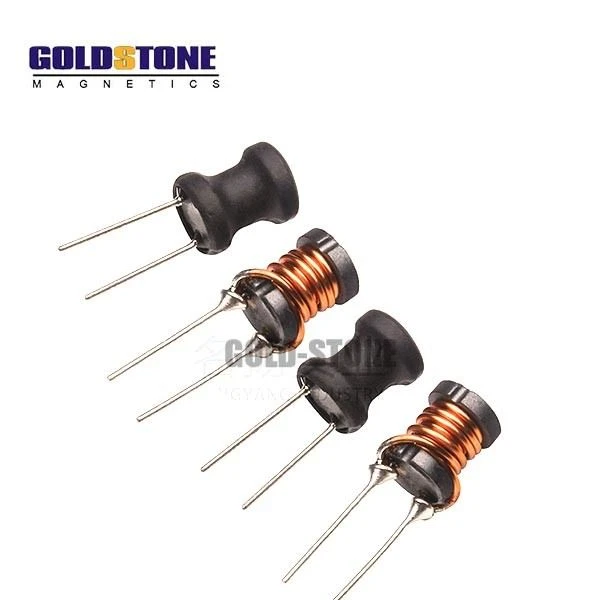

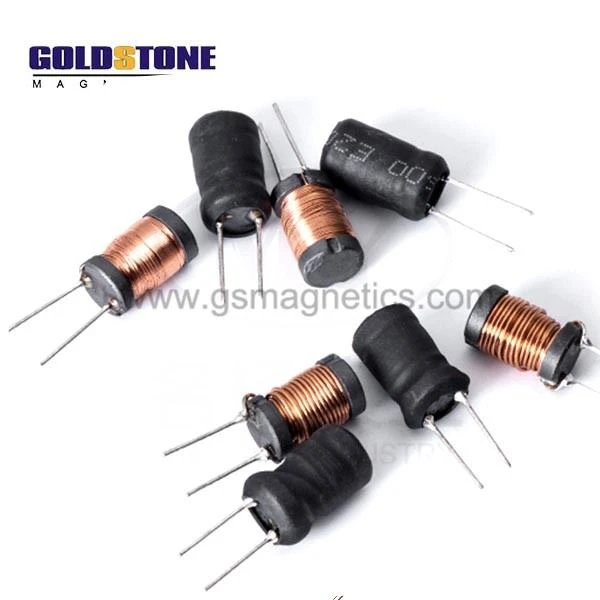

I-shape Inductor
NiZn soft ferrite drum core with 2 or 3 pins
1. Filter power inductor.
2.DC-DC converter,choke coils.
3.LED lighting and car components.
4. Tele-Communication, TV,VTR Equipment.
5.Audio and vidio antenna filters.
6.Other Electronic instruments,etc…
Description
The I-shaped inductor is an electromagnetic induction element composed of an I-shaped magnetic core skeleton and an enameled copper wire. It is a component that can convert electrical signals into magnetic signals.
The I-shaped inductor itself is an inductor. Its origin is mainly the bobbin shape of the I-shaped inductor, which is similar to an "I" shape. wind the coil in the slot of the "I shape". The two ends of the coil are connected to the pins, and the two pins of the coil are plated with tin to ensure that the two pins of the coil are welded well .
A protective sleeve is wrapped on the outside to form an I-shaped inductor. the finished shape of the I-shaped inductor is somewhat similar to an electrolytic capacitor.
Feature:
It has high power and high magnetic saturation,
low impedance
small volume.
Equivalent circuit diagram:
Application
Anti-theft devices, MODEM, LED, MP3, digital cameras
PDA handheld computers
Power modules, EL backlight, network communications, electronic toys, satellite receivers, communication equipment, fax machines, etc.
Energy-saving lamps

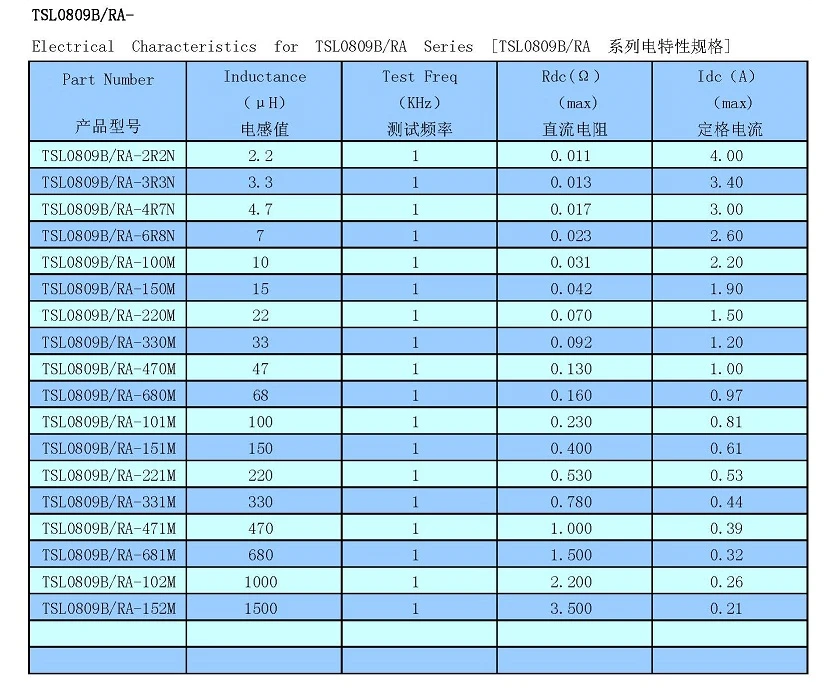

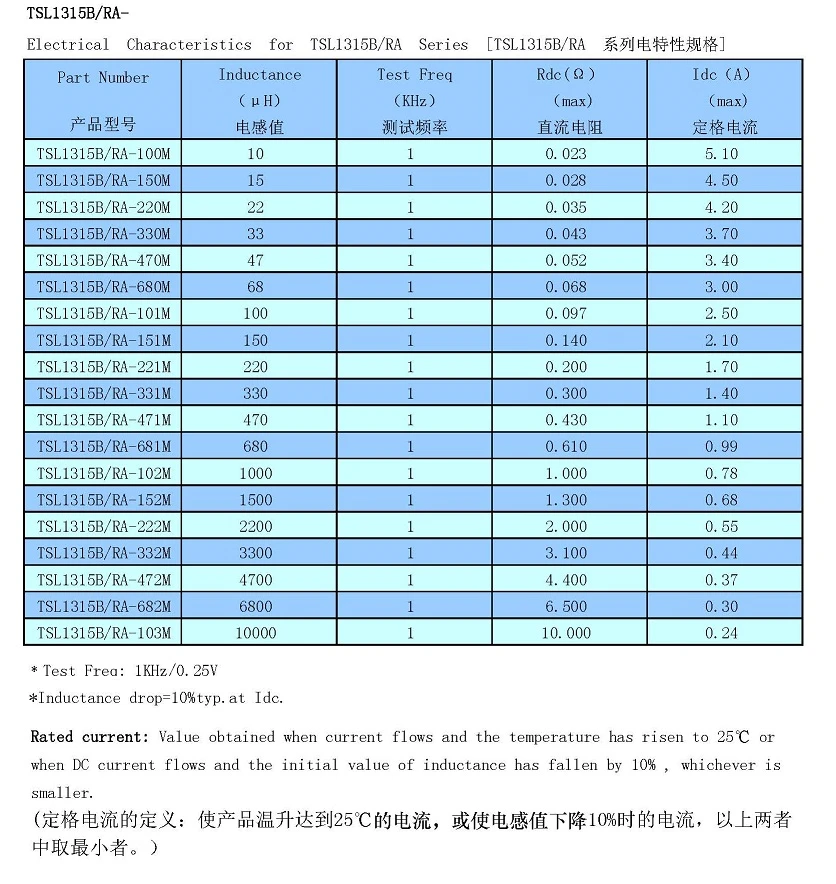

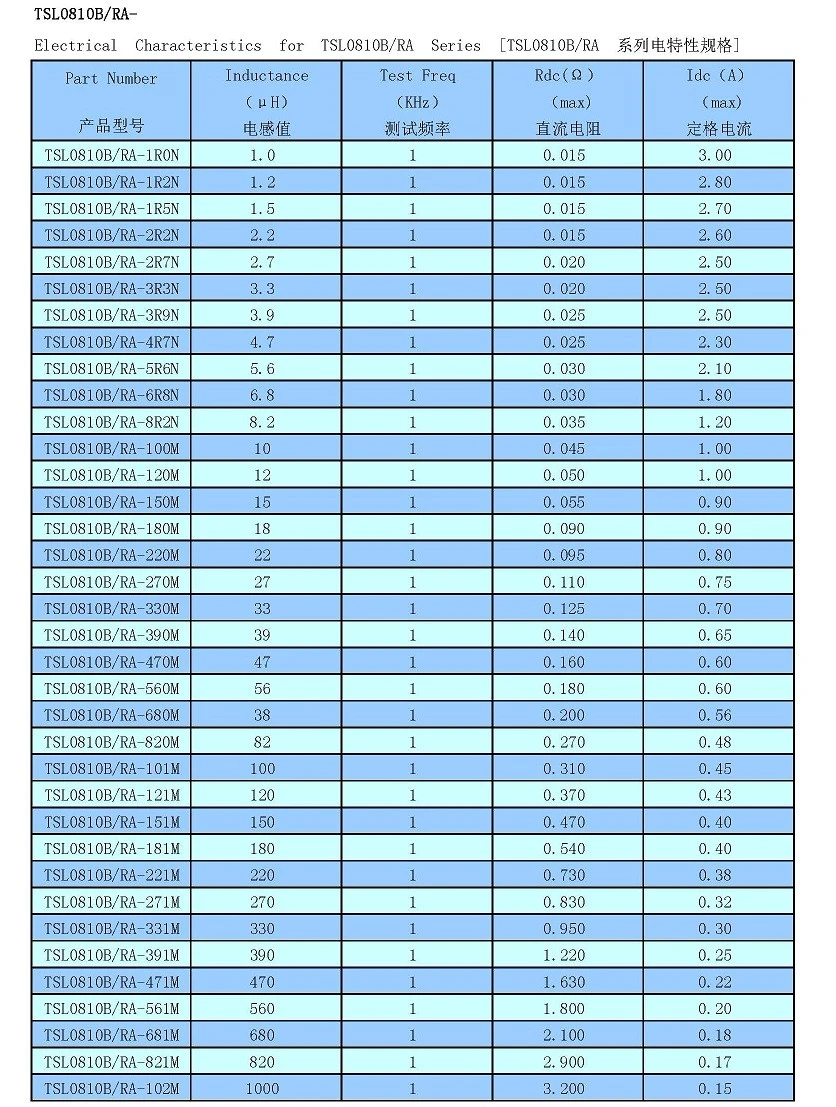

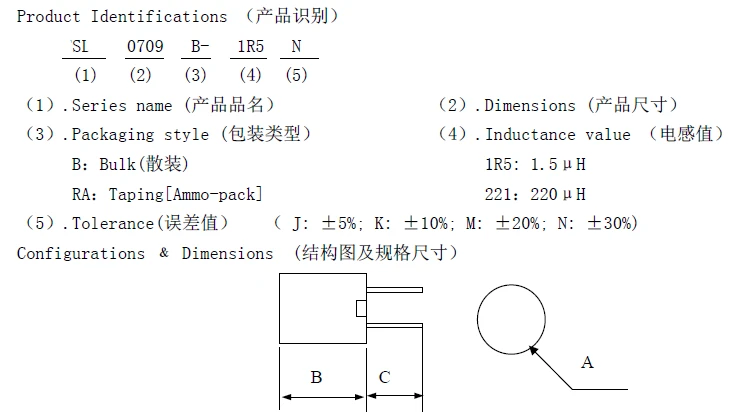

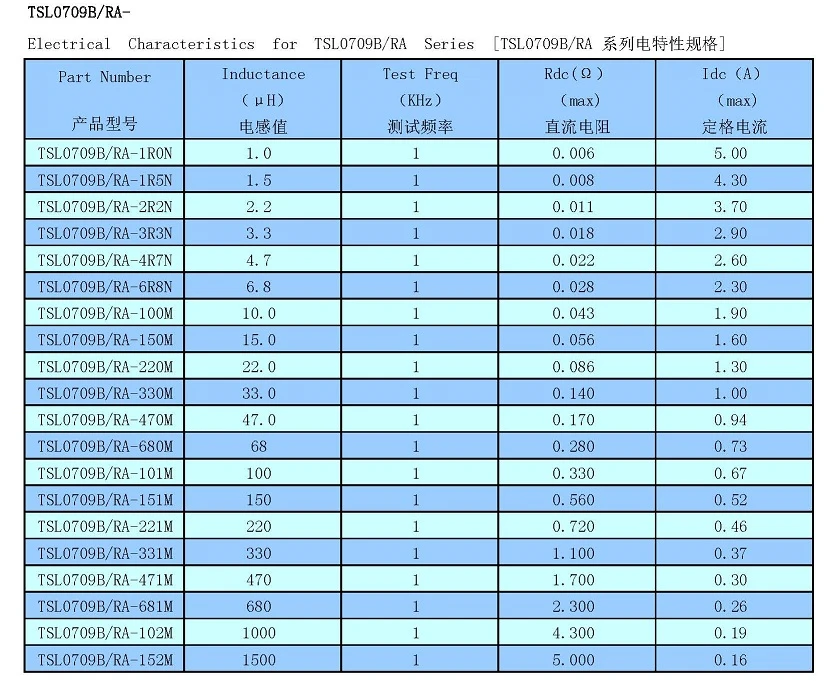

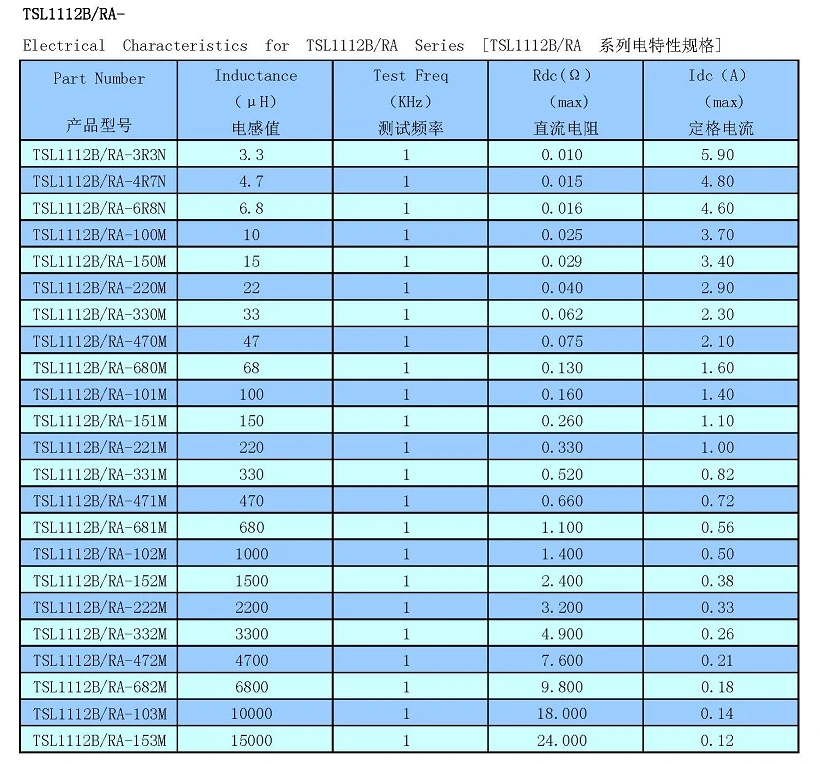

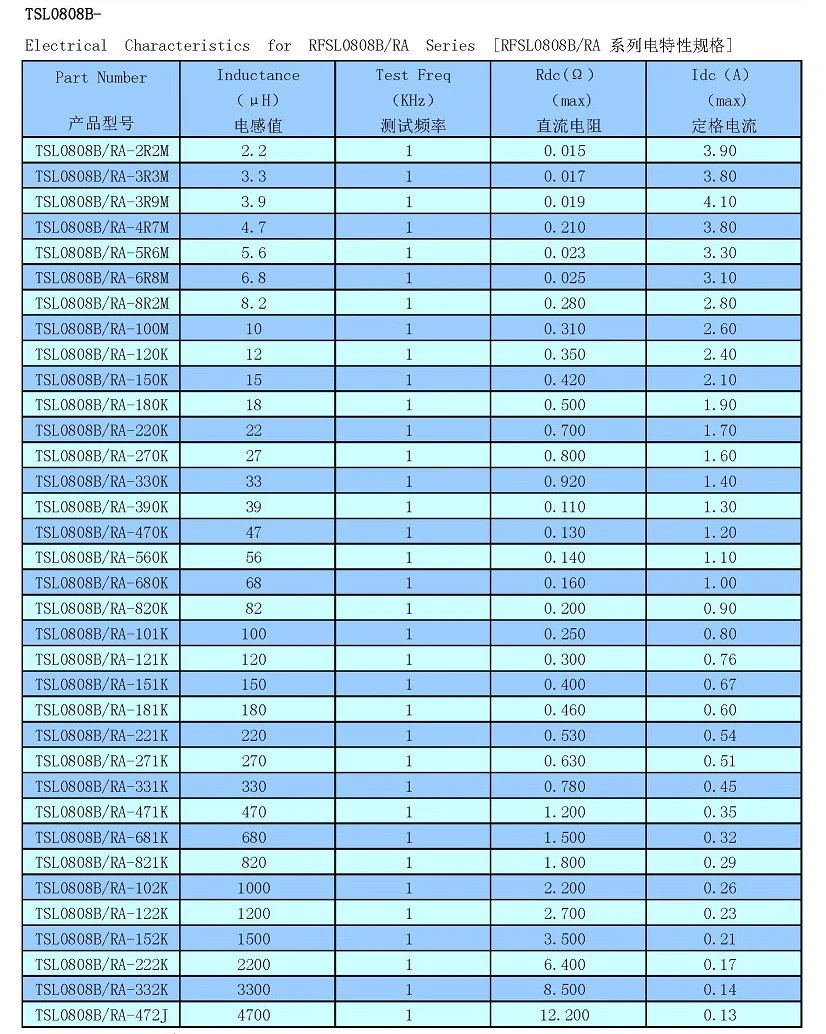

Datasheet
