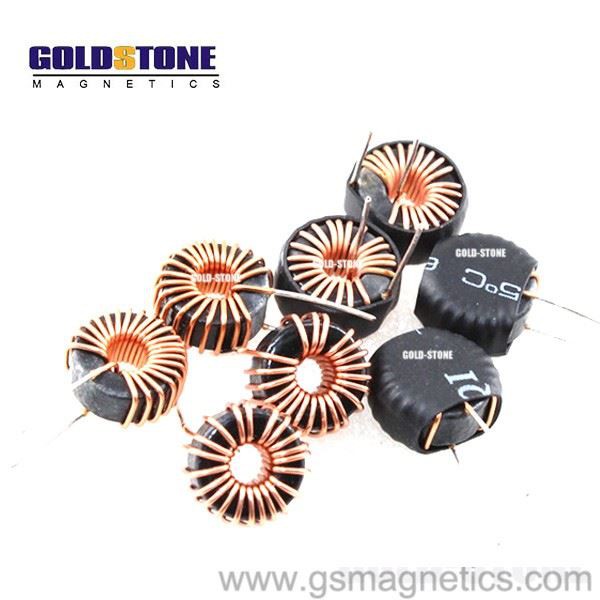

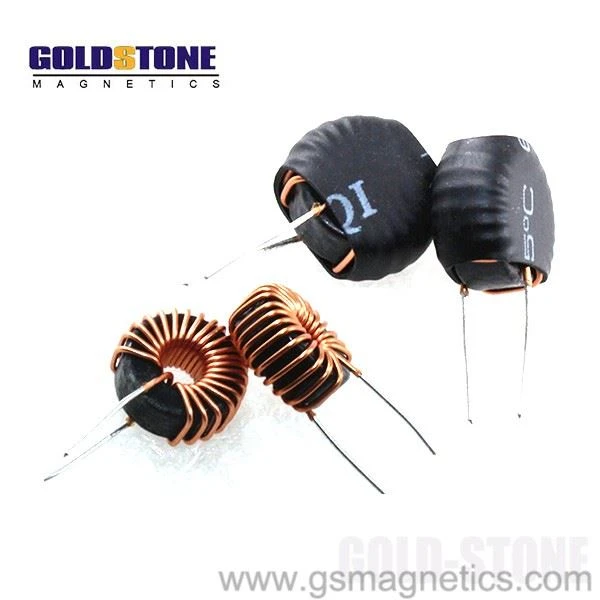

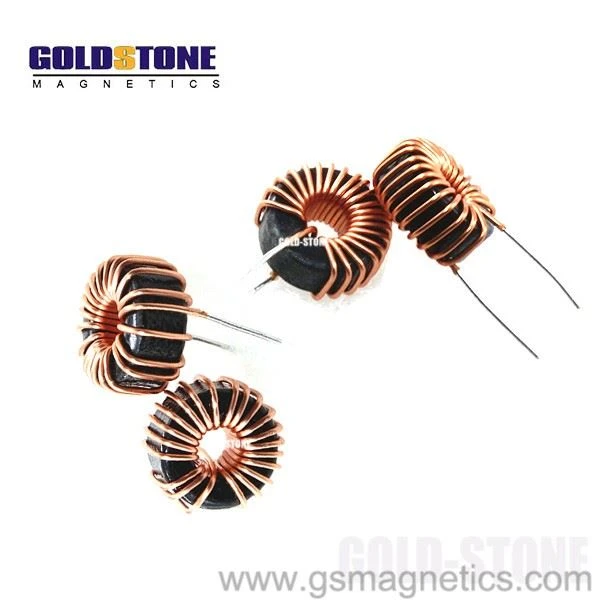

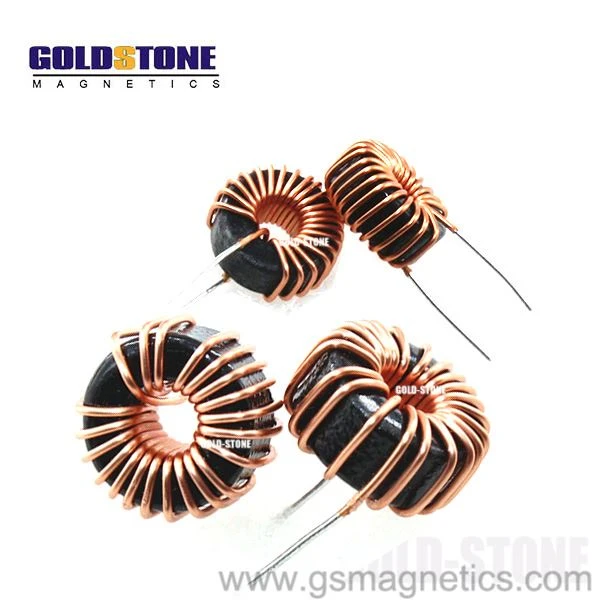

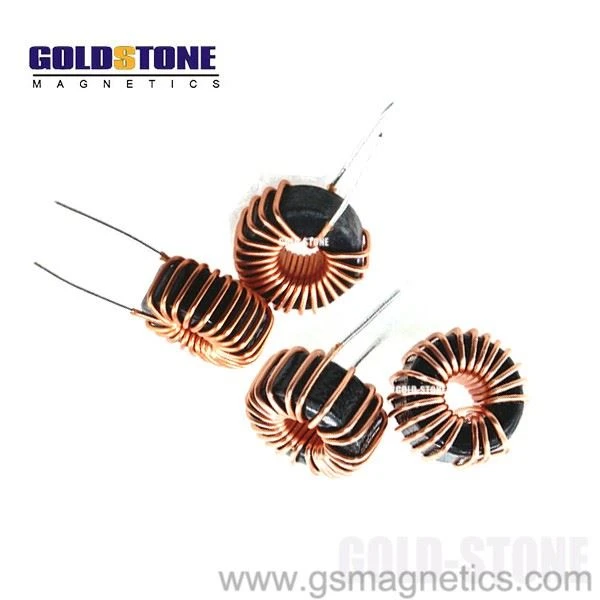

Iron Silicon Aluminum Inductor

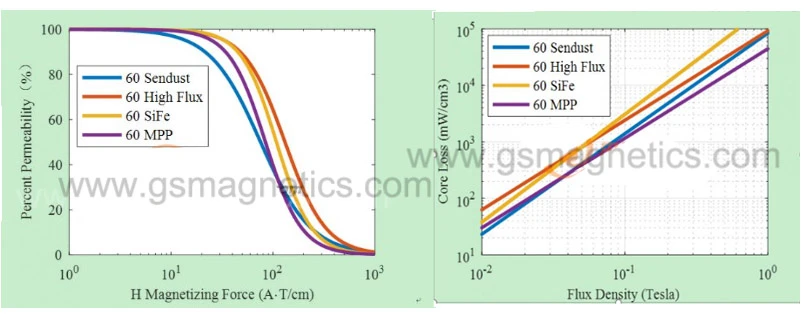

When designing magnetic components, we found that there are four kinds of magnetic particle cores: iron silicon aluminum series (Sentust), iron silicon series (Si Fe), high flux magnetic particle cores composed of iron nickel (High Flux), and iron nickel molybdenum (MPP). Figure 3 compares the DC bias performance of four materials from American Magnetic Corporation. It can be seen that the DC bias capacity of Iron Silicon Aluminum Inductor is the worst, that is, the size of its designed inductor needs to be relatively large; Figure 4 shows the loss curve. It can also be seen that the loss of iron, silicon and aluminum is small. However, when looking for cutomers  recently, I found that there are only a lot of  choose iron silicon aluminum  not  iron silicon magnetic cores, most because its price is good.

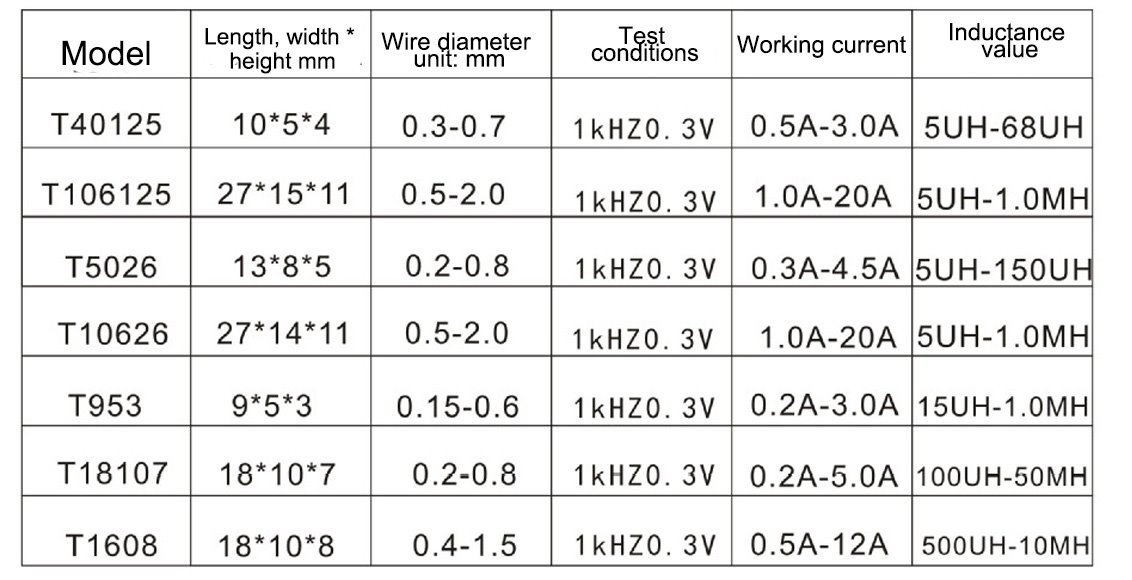

Datasheet

① Product type: Ring inductor.

② Inductance value: for example, 5ro means 5. Oull.

③ Allowable tolerance of inductance: J: + 5%; K :+10%; M:+20%。

④ Core ↓ outer diameter = 0.2 inch.

⑤ Core material: "- 26" or "- 52".

remarks:

The above specifications are some product models, which are divided into vertical and horizontal types. The parameters are for reference only,

Special requirements can be customized

Guarantee Quality
1. Professional testing team, tester, comprehensive testing from raw materials to production process

2. Strictly follow the requirements of ISO quality system certification to control product performance and reliability

3. Introduce traceability control procedure, identify products in the whole process, and realize product traceability

4. Five quality inspection procedures to ensure that the ex factory pass rate of products is more than 99%

Industry prospect

Application of the iron  silicon aluminum magnetic ring inductance:
1 power inductance, such as computer motherboard;
2 power factor correction, such as power supply;
3 common mode filtering, such as mobile phone charger;
4 current regulation, such as lighting variable voltage dimmer;
5 choke, such as uninterruptible power supply (UPS);
6 choke coil, such as control board of various household appliances;
7 differential mode filtering, such as strong industrial board;
8 choke coil, such as speed regulating motor control equipment

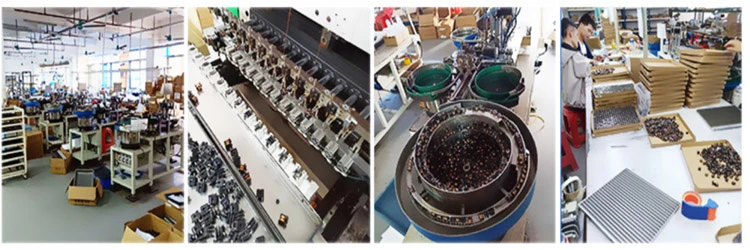

Factory display

Delivery Guarantee

1. Introduction of full-automatic production equipment, reducing delivery time by 30%

2. Optimize process and make reasonable production plan

3. 365 * 24-hour high-speed operation of equipment, multi shift rotation of employees, ensuring delivery time

4. Standing stock of more than 1000kk to ensure delivery

1. Exquisite workmanship

2. Exquisite craftsmanship

3. The company's pursuit of excellence

4. Degree, mature and stable processing technology,

5. Thus, the high quality of the product can be fully guaranteed

If you have special customized  iron silicon aluminum inductor requirements, you can send us an email
