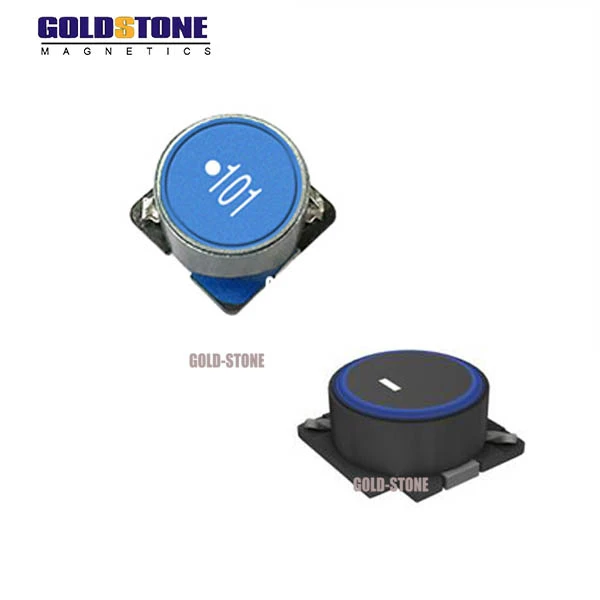

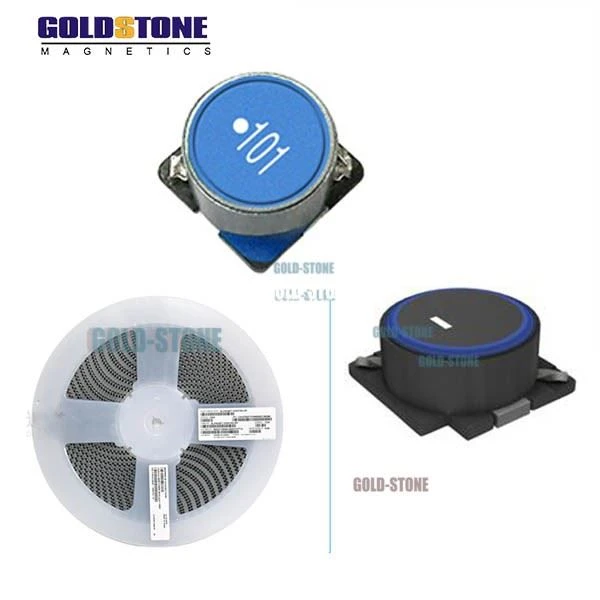

SMD Shielded Power Inductor

SLF series power inductors is a magnetic shielded wound inductor
Which is suitable for general power circuits in automotive applications
The operating temperature range is - 40°C to + 125 °C
Accord with AEC-Q200 standard.

Send Inquiry

Description

The SMD Shielded Power Inductor generates alternating magnetic flux in and around the wire when AC current is passed through the wire. When DC current is passed through the inductor, only fixed magnetic flux lines appear around the inductor, which does not change with time; When an alternating current is passed through the coil, the magnetic field lines that change with time will appear around the coil.

Supply SLF6025、SLF6028、SLF7028、SLF7030、SLF7032、 SLF7045、 SLF10145、 SLF12555、 SLF12565、 SLF12575
SMD shielded power inductor are intended for use in general electronic equipment (AV equipment, telecommunications,equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement.

Features

Low-profile type with low Rdc and large current
Magnetically shielded wire wound inductors for power circuits.
Product lineup allows various uses
Compact and thin
Magnetically shielded construction

Test equipment and conditions:

Inductor Testing: HP4284A (Equivalent acceptable)
DCR:QuadTech 1880 Milliohmmeter
IDCMax current is decreased 10% against its initial value
Operating temperature: -40℃ to +105℃
Storage Temperature: -40℃ to +105℃

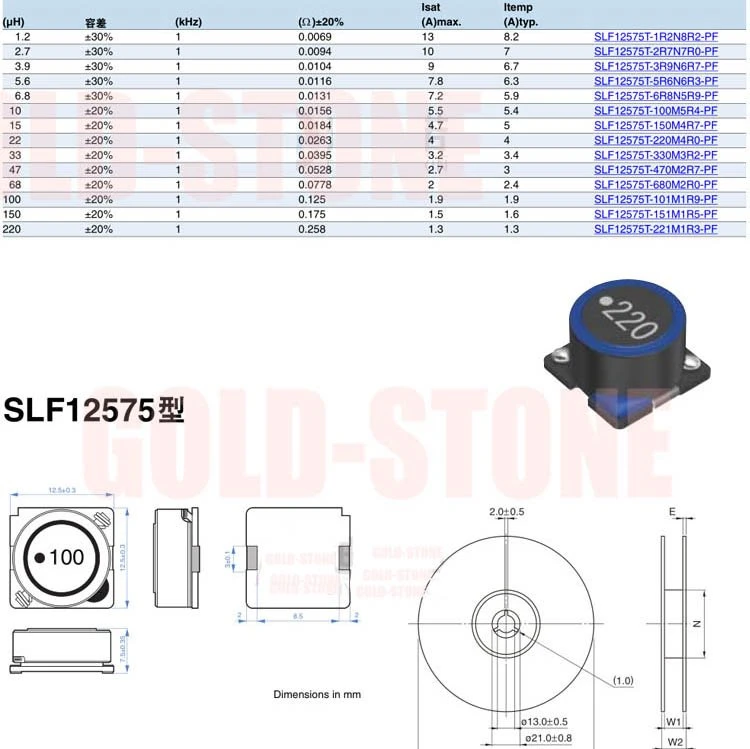

Datasheet

Applications
When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing,protection circuit/device or providing backup circuits in your equipment.
All of the SMD shielded power inductor with RoHS and widly used for Thin-screen TV, LCDs, AV equipment, gaming equipment, other electrical devices

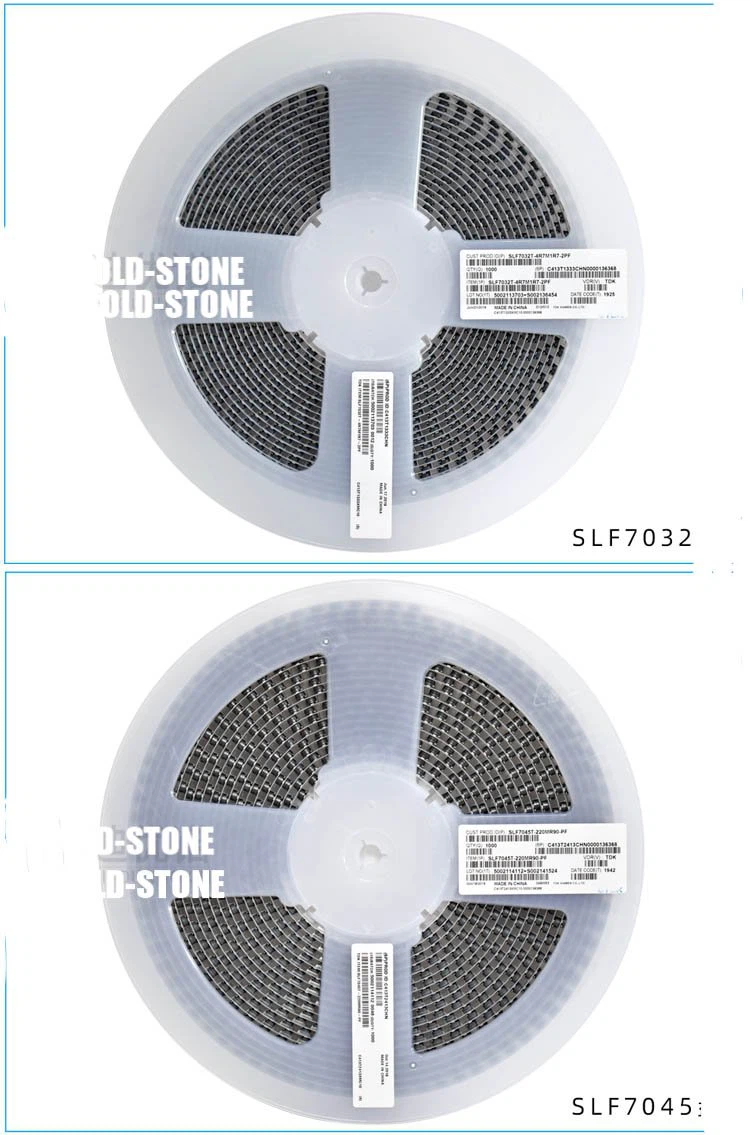

Package
