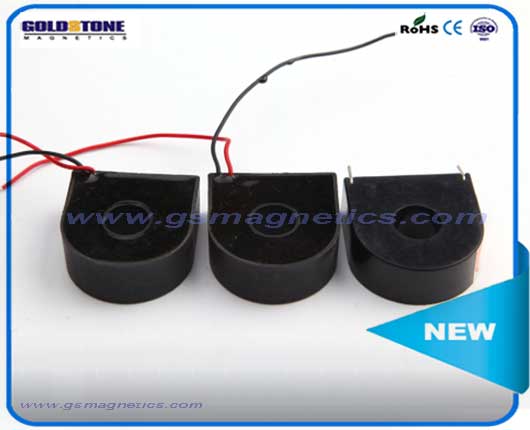

Through-Hole Current Sensor Transformer

Shaanxi Gold-Stone Electronics Co.,Ltd is one of the leading through-hole current sensor transformer manufacturers and suppliers, welcome to buy high quality through-hole current sensor transformer, current sensing transformer products from our factory.

Customized designs welcome

Features:

Low profile, elegant outlook

High sensitivity

Epoxy potted, high performance

Low cost

Turns ratio: 1:2000, 1:2500, 1:3000 1:200 .1:60 etc

Operating temperatures: -40 to 85°C

Current Transformer Catalog
ACST-01-08, ACST-120-X
AITC-449

Features

Epoxy resin wrapped package,high dielectric strength

Core is silicon steel, permalloy or nano crystal,reliable performance

Working environment

Ambient temperature:-25°C~+85°C;

Relative Humidity:When the temperature is 40°C not more than 90%

Atmospheric pressure:860~1060mbar

Dielectric strength:2500V/min.

Frequency:20Hz-20KHz

Accuracy:for IEC 60044-1 0.1,0.2,0.5%

input current:0-40A

output current:0-20mA

turn ratio:1:2000

mini current transformer

precision current transformer

terminal transformer

accuracy class: 0.2

silicon steel sheet with iron core

working temperature : -55C~+85C

dielectric strength : 6KV / min

Applications:

current control circuit and power energymeters

Epoxy encapsulated

Frequency: 50-400Hz

Insulation resistance: 100M Ohms at 500V DC

Dielectric strength: 1500V AC

Ideal for current measurement and current relaying

RTU

Power transducer

Electrical monitor system

Power meter, all sorts of controlling devices

Widely applied in earth leakage breaker, arc leakage brake,equipment leakage circuit interrupter, and ground faultsbreaker
