MPP-Cores-55588-A2,Alloy Powder Core, Soft core suppliers
MPP cores magnetics cores with good quality MPP cores can be classified according to size, permeability and temperature stability. In general, you should choose the maximum physical and economic size of the core. Due to the large cross section area and small magnetic flux density, the Q value of...
Description

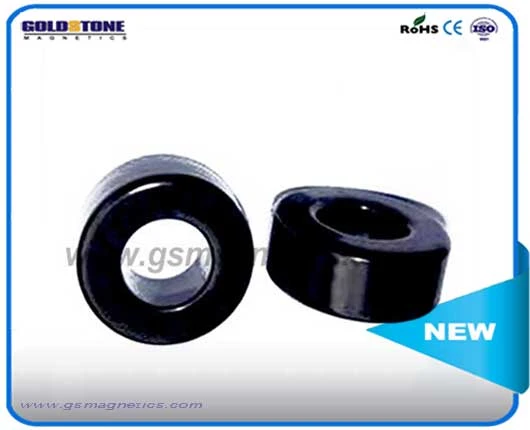

Magnetics core -55588-A2 High Quality MPP Cores ,Alloy Powder Core Soft core
Features:
MPP powder cores are 81% Ni, 2% Mo and 17% Fe powder constitutes the main features are: saturation magnetic induction value in about 7500 gauss magnetic permeability range from 14μ-550μ.
Powder cores with the Lowest loss.
Excellent temperature stability.
Magnetostriction coefficient is close to zero,
No noise is generated when the work at different frequencie

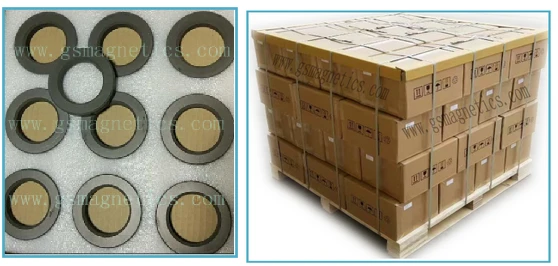

Packing and delivery:
Applications:
audio tuning circuit,
high-Q filtering load coil,
radio frequency (RFI) filters
medical equipment /space equipment/outdoor equipment
If you have any interest in our products ,please contact us:
FAX:86-29-85401274 Mobile:153 5351 3263
Email:sales@gsmagnetics.com sales@gstronics.com
Contact person :Mr Mark Chen(General Manager)
Skype: Mark.chen90
Product Details
Place of Origin:Shaanxi China (Mainland)
Brand Name:Gold-Stone
Model Number:0055588-A2
material:MPP
certificates:ISO:9001-2008
Name:MPP Cores 0055869A2
Alternative name: Alloy powed core，soft core
Specification:
Mateail：MPP Colour：GLue
Permeability：14u , AL:16±8% nH/T2
Before Coating Size: OD A:34.3nom ID B:23.4 nom Thick C:8.90 nom | After Coating Size: OD A:35.2 MAX ID B:22.5 Min Thick C:9.78Max |

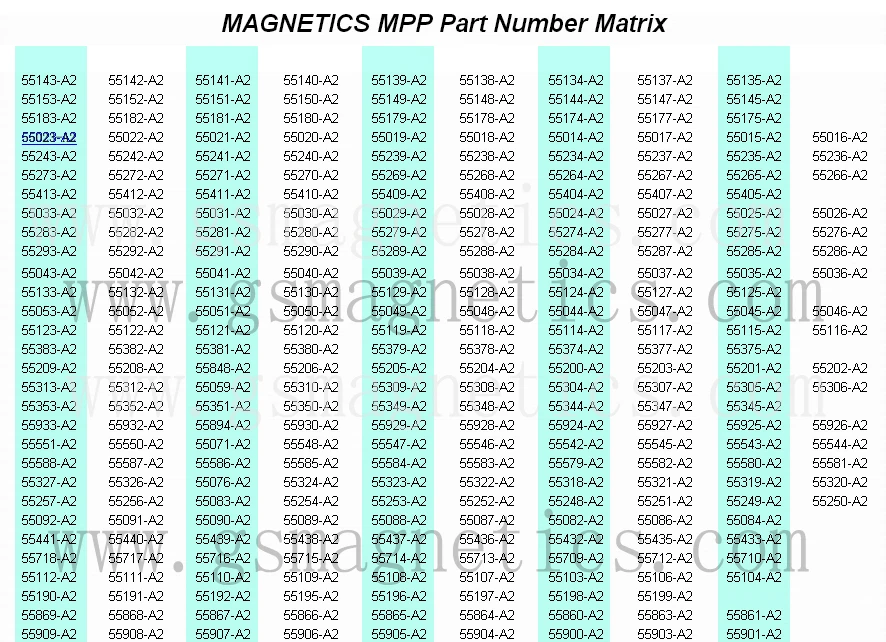

As follows the exact type for your reference
