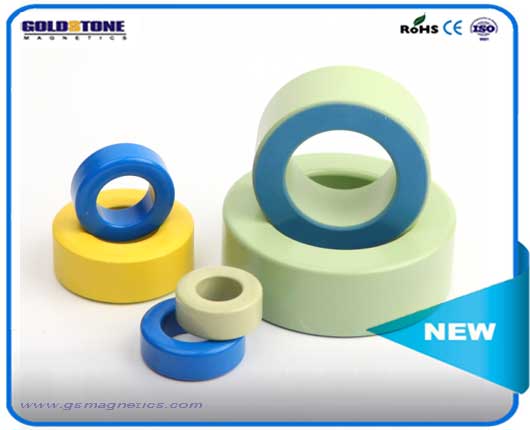

Alloy Powder Core

Shaanxi Gold-Stone Electronics Co.,Ltd is one of the leading alloy powder core manufacturers and suppliers, welcome to buy high quality alloy powder core, toroidal alloy powder core, mpp cores, high flux cores, sendust core products from our factory.

• Different dimensions of toroidal      cores made of iron powder,sendust, MPP, high flux

• Iron powder toroidal cores used      in:

• Output chokes for switching power       supplies

• Constructed EMI nose filters

• Pulse transformers, DC output,       input filters

• Light dimmer chokes (PFc)

• Power factor correction inductors

• Continuous mode fly-back       inductors

Alloy Power Core Catalog
Material Characteristics Cures
Temperture Stability
Typical Incremental Permeability vs. D.C. Bias
Permeability vs. AC Flux Density
Permeability vs. Frequency
Core Loss vs. Flux Density
Toroidal cores
MPP, HF, KS 031-14 to 040-125 Series
MPP, HF, KS 050-14 to 080-125 Series
MPP, HF, KS 090-26 to 107-125 Series
MPP, HF, KS 130-26 to 135-125 Series
MPP, HF, KS 141-26 to 184-125 Series
MPP, HF, KS 185-26 to 226-125 Series
MPP, HF, KS 300-26 to 301-125 Series

Features :

• Sendust toroidal cores used in switching regulator      inductors,in-line noise filters, pulse transformers, fly-backtransformers

• sendust core

• Sendust core/ toroidal core / alloy powder core      Senddust core is made from 85% Fe, 9%Si and 6%Al. It’s first invented by      Japanese in 1930s, because it’s invented in Sendai, so it is called Sendust. It      named KoolMu by Magnetics. This material has low loss and relative high      saturation flux density (10500Gs). it is very suitable for applying in PFC      Chokes, Fly-back Transformers and Storage Filter Inductors. This soft      magnetic material’s magnetostriction is almost zero, so is special      suitable for eliminating the In-line Noise Filters. Sendust Cores do not      use organic binding material during the production, so it don’t does not      have the problem of Thermal Aging. It can work in the environment of 200°C for a long time.

• MPP toroidal cores used in

• High Q inductors, low loss filter circuits, loading       coils,transformers, chokes and inductors

• Output filters, storage chokes

• MPP cores possess many outstanding magnetic       characteristics, such as high resistivity, low hysteresis and eddy       current losses, excellent inductance stability after high DC       magnetization or under high DC bias conditions and minimal inductance       shift up to 2000 gauss under AC conditions. Applications for MPP cores       include; Flyback Transformers, Buck/Boost and   Power Factor Correction (PFC) ,       Inductors, In-Line Noise Filters, High Q Filters, and Resonant Circuits.

• High flux toroidal cores used in in-line noise      filters,switching regulator inductors, pulse transformers,      fly-backtransformers

• High flux toroidal cores used in PFC chokes, output      filters,storage chokes

Applications:

PFC chokes for large current
Reactor for electric vehicles/air condition
Power inductor for fuel cell vehicles
In line noise filters
EMI filters
Boost inductors
Switching regulator inductors
