90*60*20 amorphous nanocrystalline toroidal core can replace VAC Part Number with black plastic case
High saturation magnetic induction intensity, reduces the core volume Rectangular structure is advantage for the coil assembly Core openings, excellent ability to resist DC bias saturated Low loss, reduces tempereture rise (1/5-1/10 is silicon steel)
Description
90*60*20 amorphous nanocrystalline toroidal core can replace VAC Part Number with black plastic case
Properties of Amorphous and Nanocrystalline Ribbons
Properties | Fe-based Amorphous | Fe-based Nanocrystalline |
Saturation Flux Density Bs(T) | 1.56 | 1.25 |
Density(g/cm3) | 7.18 | 7.25 |
Electrical Resistivity(μΩ.cm) | 130 | 115 |
Curie Temperature Tc(℃) | 399 | 570 |
Crysatllization Temperature Tx(℃) | 508 | 510 |
Vicker’s Hardness Hv | 860 | 960 |
Features:
1.High saturation magnetic induction,
2.High permeability, low coercivity, low loss and good stability, 3abrasion resistance, corrosion resistance and low price, with all the metal soft magnetic material cost ratio of the best performance.
Applications:
Can replace silicon steel, permalloy and ferrite, as large and medium-sized power transformers, control transformers, filter inductors, energy storage inductors, reactors, magnetic amplifiers, saturated reactor core and other forms of high frequency switch Power supply, EMC filter common mode inductor and differential mode inductance core, ISDN micro-isolation transformer core; at the same time widely used in various types of different precision transformer core.

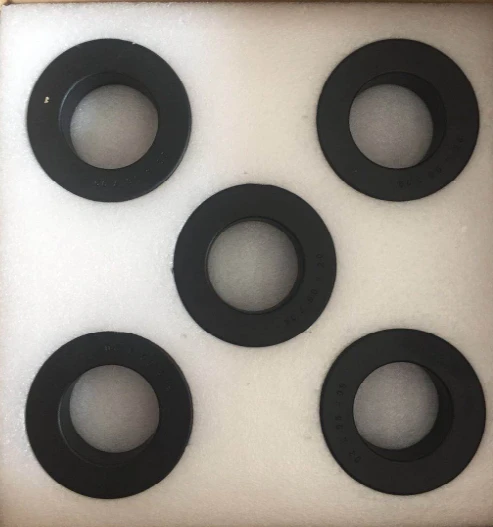

Packaging and shipping:
If you have any interest in our products ,please contact us:
FAX:86-29-85401274 Mobile:153 5351 3263
Email:sales@gsmagnetics.com sales@gstronics.com
Web:www.gsmagnetics.com
Contact person :Mr Mark Chen(General Manager)
Skype: Mark.chen90
Features :
Low loss, reduces tempereture rise (1/5-1/10 is silicon steel)
Excellent temperature stability, from -55 to 130°C for long time.
Applications:
Output filter reactor in high frequency high-power switching mode power supply
Medium and high frequency switching mode power supply transformer
Main transformer in some UPS
Remarks: customized cores of other sizes and various characteristics available upon requests
output filter or inductor cores in high frequency large power supplies and solar inverters
switching power transformer cores and current transformer common mode Cores for EMI filters, storage inductors and reactors for DC high current choke coils
Transfomer cores in middle and high frequency switch mode power supplies;
The Amorphous can be windely used to do the following products :
--Common Mode Filter Chokes
--Split CT
--Current Transformers
--Differential Mode Chokes
--Automotive Chokes(For car audios)
--Magnetic Amplifiers
--PFC Chokes
--Cores and Current Transformers for energy meters(Watt hour meters)
--ELCB (Earth Leakage Circuit Breakers)
--Toroidal transformers
--Magnetic ballasts.
If you have any interest in our products ,please contact us:
FAX:86-29-85401274 Mobile:153 5351 3263
Email:sales@gsmagnetics.com sales@gstronics.com
Contact person :Mr Mark Chen(General Manager)
Skype: Mark.chen90
