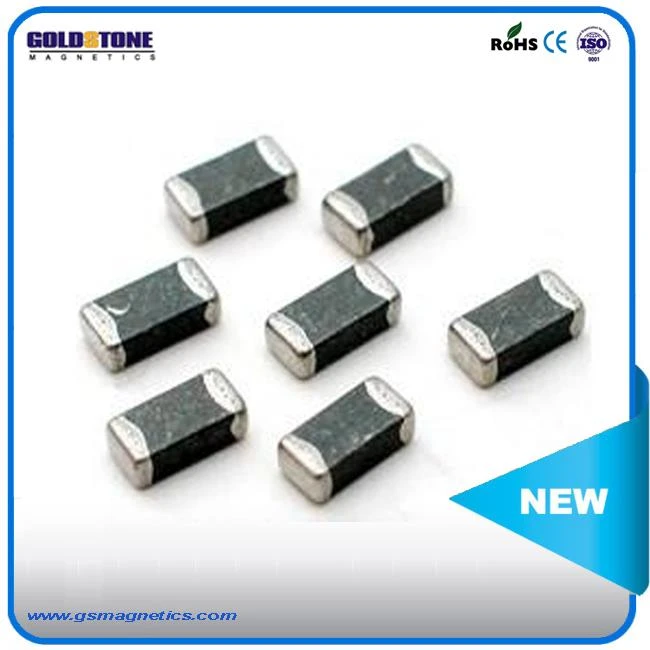

Multilayer Chip Inductors

Shaanxi Gold-Stone Electronics Co.,Ltd is one of the leading multilayer chip inductors manufacturers and suppliers, welcome to buy high quality multilayer chip inductors, multilayer chip beads, high current multilayer chip beads, high frequency multilayer chip inductors products from our factory.

• Materials:

• Body: ferrite

• Terminal: tinned copper plate t=0.2mm

• Features:

• Monolithic inorganic material construction

• Closed magnetic circuit avoids crosstalk

• Low DC resistance and       high current-handling capability

• Excellent solder ability, heat resistant and       highreliability

Features :

Adopting a variety of materials and processes for noise suppression

In a wider frequency range, suppression and elimination of electromagnetic interference/RF interference

Less phenomenon of heating and magnetic flux leakage

Adopting magnetic shielding structure to realize miniaturization

Without grounding ,flexible circuit design

Multilayer Ferrite Chip Beads

Chilisin offers a wide range of multi-layered ferrite chip beads with various

sizes, frequency characteristics, and impedance values for EMI solutions.

These ferrite formulas are used to compose seven types of EMI

suppression chip beads: SB, GB, PB, UPB, NB, HF, and VPB series.

Product symbol: SB, GB, PB, UPB, NB, HF, VPB

Packaging: T:Tape and Reel;B:Bulk

Tolerance: Y = ± 25%; M = ± 20%; T:±30%

Note: RoHS Compliant

General specifications:

Storage temperature: -40 to 125°C

Operating temperature: -40 to 105°C

Resistance to solder heat: 260°C, 10 seconds

Electrical: 47Ω/5A

Chip bead

Applications:

Highly suitable for noise suppression in DC power lines of USBinterface circuitry, HDDs, PCs and other general electronicequipment
