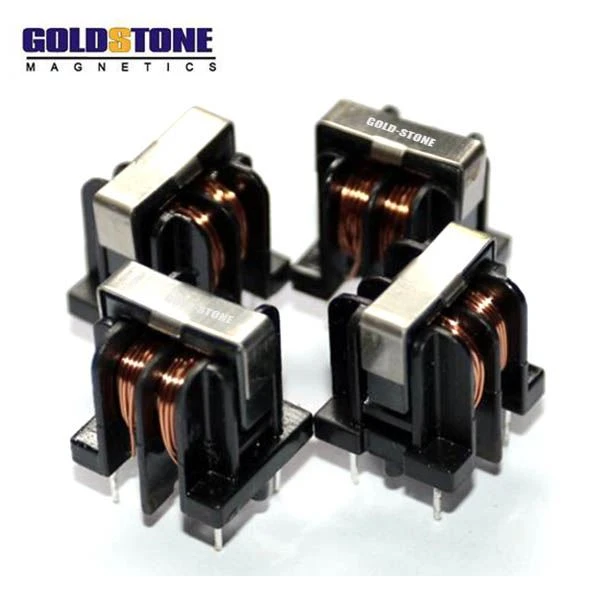

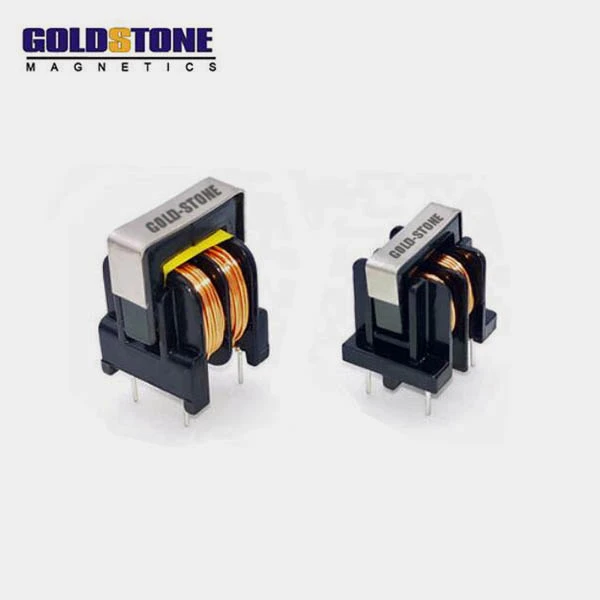

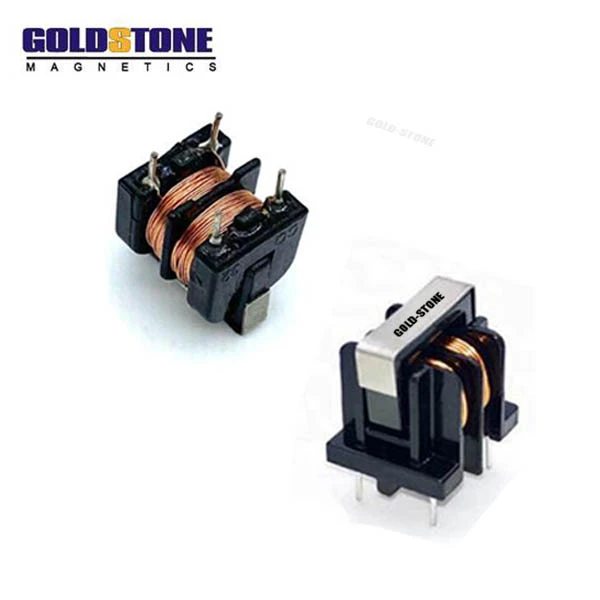

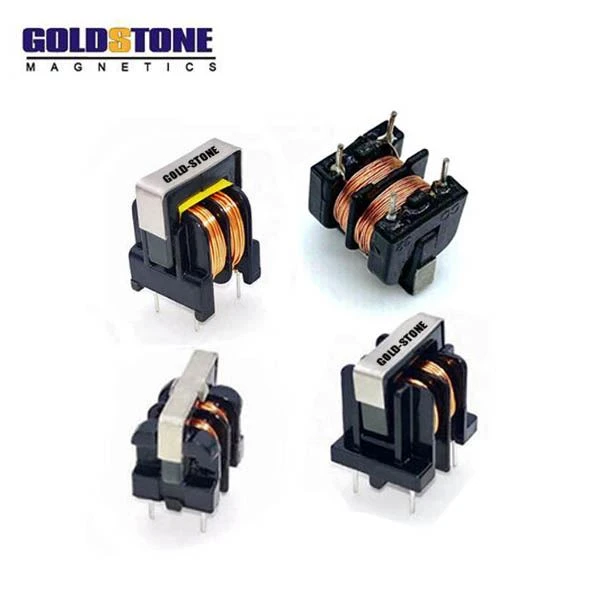

Power Frequency Filter

Power Frequency Filter is a frequency-selective device that allows certain frequency components in a signal to pass while greatly attenuating other frequency components. Using this frequency selection function of the filter, interference noise can be filtered out or spectrum analysis can be performed. In other words, any device or system that can pass a specific frequency component in a signal and greatly attenuate or suppress other frequency components is called a filter.

Product details:

Power Frequency filter components:ferrite core, bobbin, copper wire, coper foil tape, margin tape, tube

 Bobbin Material:Phenolic

 Shape Type:horizontal type / vertical type / SMD type

 Working Frequency: Rangeabove 1KHZ

 Output Power:1W-3000W

 Output Voltage:0.5V-5000V

 Output Current:0.01A-100A

 Storage Temperature:-25℃ to +95℃

 Working Temperature:-40℃ to +125℃

 Storage Humidity:30% to 95%

 Certifications:ISO9001:2008, ISO14001:2008, UL, CQC

 MOQ:1000 pcs

 OEM:Acceptable

 Sample:Free

 Sample Time:3-5 working days

 Package:EPE foam + export carton, or  plastic tray+export carton

 Delivery time:About 15 working days against deposit

The Power Frequency filter production conditions and process requirements of the UU shape are also very harsh, because the temperature will affect the Curie degree of the magnetic core and thus change the inductance of the inductance, but as long as it does not exceed 60 degrees, the inductance will not change much.

Test Items:
Ø Turns Ratio

Ø Inductance

Ø Phase Test

Ø Inductance leakage

Ø DC resistance test

Ø Withstand voltage

Ø Insulation resistance

Production Application
