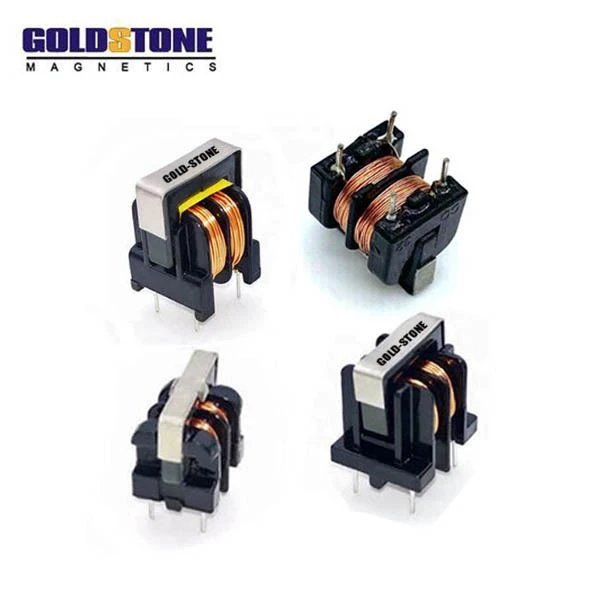

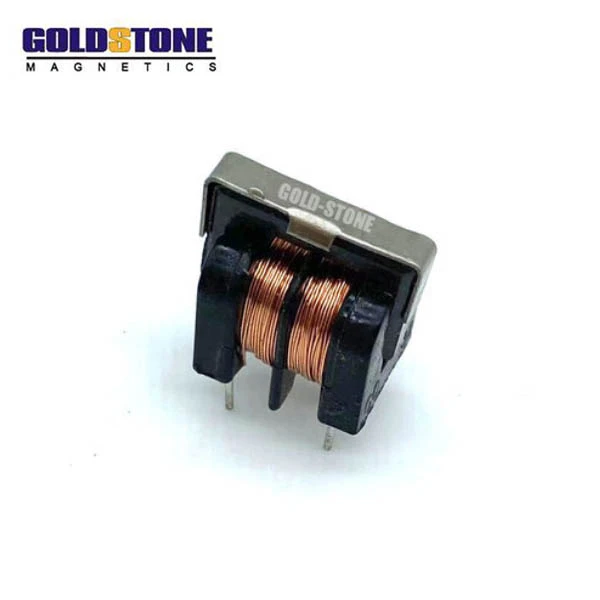

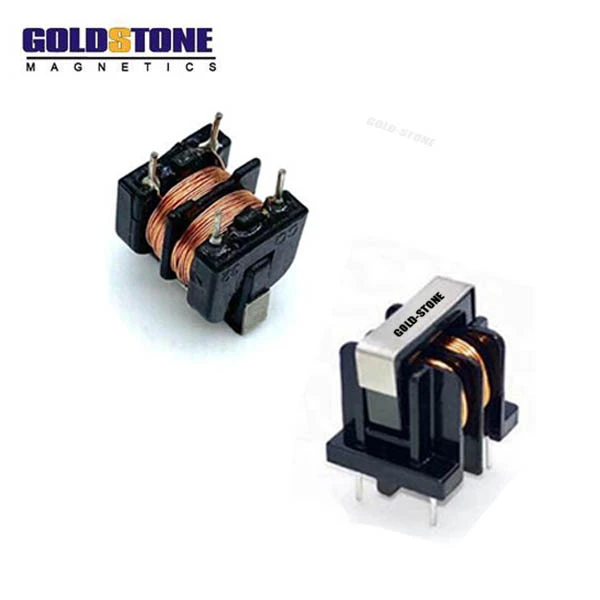

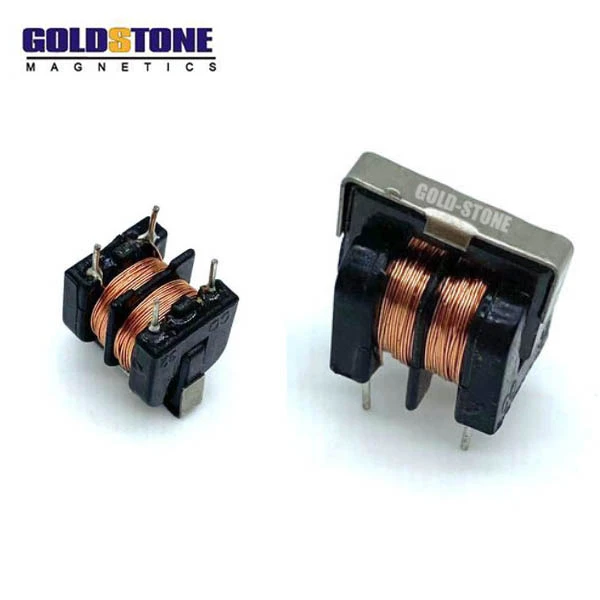

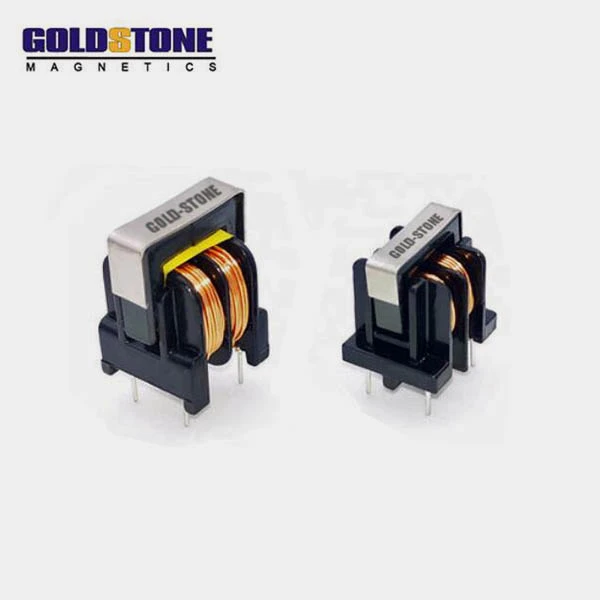

Filter Inductance

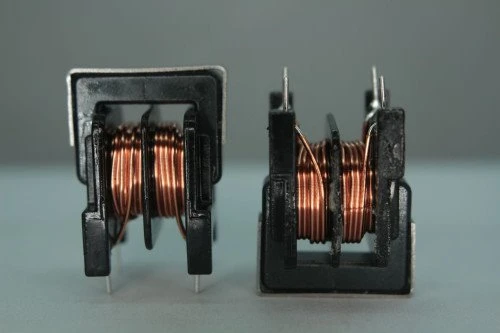

Model: uu9.8 uu10.5 uu16
Package form: plug-in inductance
Winding form: single layer dense winding
Properties of magnetic conductor: ferrite core
Core shape: E shape
Working frequency: high frequency
Installation method: vertical seal
Skeleton material: plastic
Inductance: 5mh 10MH 15mh 20MH
Allowable error: 10%
Description
Filter Inductance is a frequency-selective device that allows certain frequency components in a signal to pass while greatly attenuating other frequency components. Using this filer frequency selection function of the filter, interference noise can be filtered out or spectrum analysis can be performed. In other words, any device or system that can pass a specific frequency component in a signal and greatly attenuate or suppress other frequency components .
Product details:
FEATURES:
1. Metallization on ferrite core results in excellent shock resistance and
damage-free durability.
2. Closed magnetic circuit design reduces leakage flux and Electro
Magnetic Intrference (EMI).
3. Fe base metal material core provides large saturation current.
4. Automatic production ensures high quality and consistency.
APPLICATIONS:
1. Protect AC side from the affecls of switching regulators
2.Provide noise elimination and immunlty for TVs,TVRsNVCRs,audio equipmens,etc

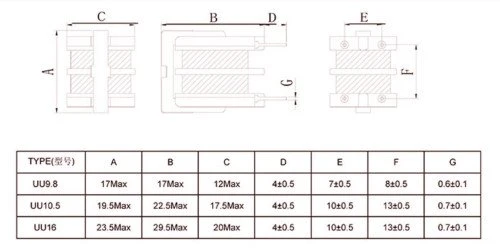

SHAPES AND DIMENSIONS:unit(mm)


we have the product in stock, welcome directly buy it
UU10.5-1MH-040 UU10.5-1MH-050 UU10.5-5MH-050 UU10.5-10MH-040 UU10.5-20MH-030 UU10.5-30MH-030 | UU9.8-4MH-030 UU9.8-5MH-035 UU9.8-10MH-020UU9.8-10MH-030 UU9.8-20MH-020 UU9.8-20MH-025 UU9.8-40MH-020 |

Hot Tags: filter inductance, China, manufacturers, suppliers, factory, high quality, products
Send Inquiry
You Might Also Like
-

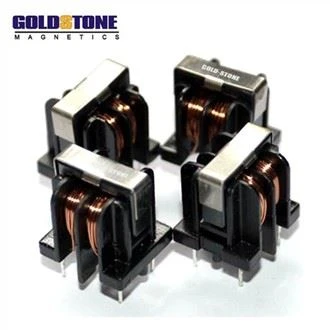

Power Frequency Filter
-

Magnetic Core UF25 High Frequency Transformer Magnet...
-

EI66 Square Inverter Power Transformer Isolation 220...
-

EI28*18 Small Pin Type Power Electronic Transformer ...
-

TP20A SERIES High Frequency 100 Watts Planar Transfo...
-

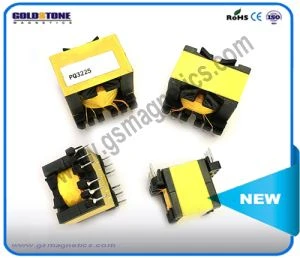

Custom Made High Frequency Electronic Transformer EP...
