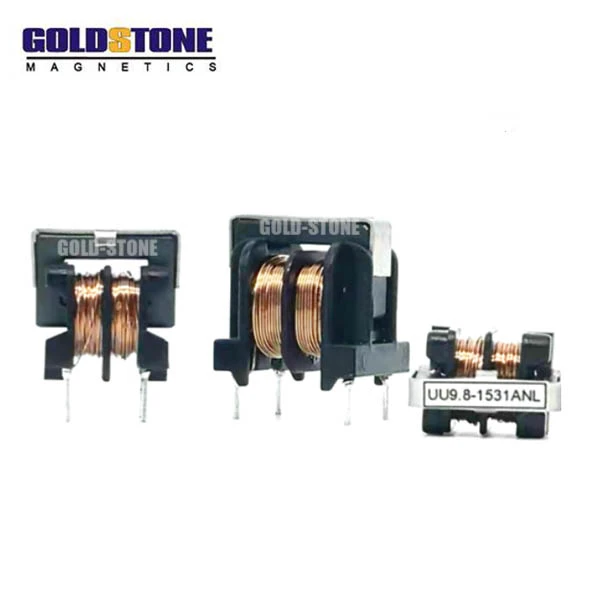

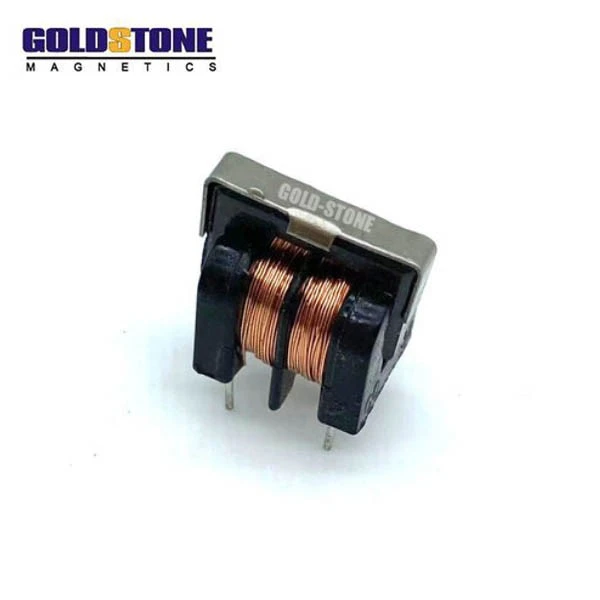

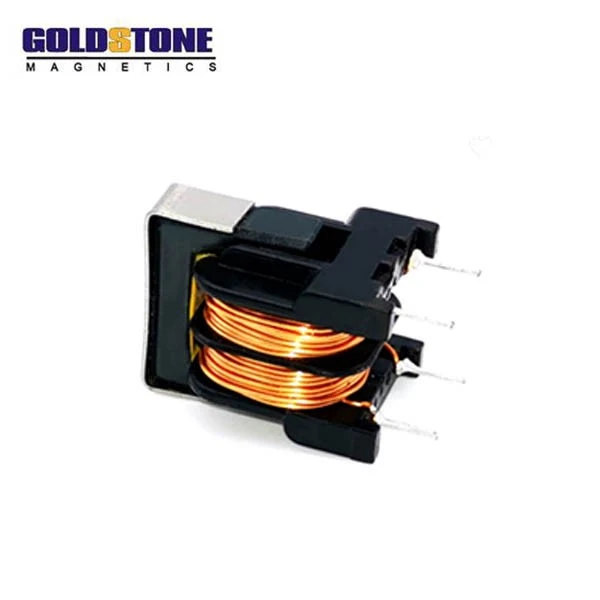

UU9.8,UU10.5 Common Mode Inductance

Factory direct sales in large quantities: main magnetic ring inductors, iron silicon aluminum, filters, I-shaped inductors iron silicon aluminum vertical /Horizontal 22UH 33UH 47UH 68UH 100UH 120UH 150UH 180UH

220UH 330UH 470UH 500UH

Filter: UT20 UU16/UF16 UU10.5/UF10.5 UU9.8/UF9.8 EE8.3

EE8.3 EE10 EE12

5MH 10MH 15MH 20MH 25MH 30MH 35MH

40MH 45MH 50MH 55MH 60MH

Paste, chip inductance CD32 CD54 CD73 CD75 CD105 CD127D CDRH54 CDRH74

CDRH105 CDRH 127 etc.

Product details:

UU9.8 inductance performance

1. Working frequency: 20kHz-500KHz

2. Operating temperature: -40°C to +125°C

3. Storage temperature: -25°C to +85°C

4. Storage humidity: 30 to 95%
Characteristics of UU9.8 inductors

UU9.8,UU10.5 Common Mode Inductance have the characteristics of small size, convenient winding, low price and high reliability.

Features:

1. The electrode is directly metallized on the magnetic core, which has strong drop impact resistance and durability.

2 Closed magnetic circuit design, less magnetic leakage, strong resistance to point magnetic interference

3. High saturation current

4. Automated production ensures high quality and consistency

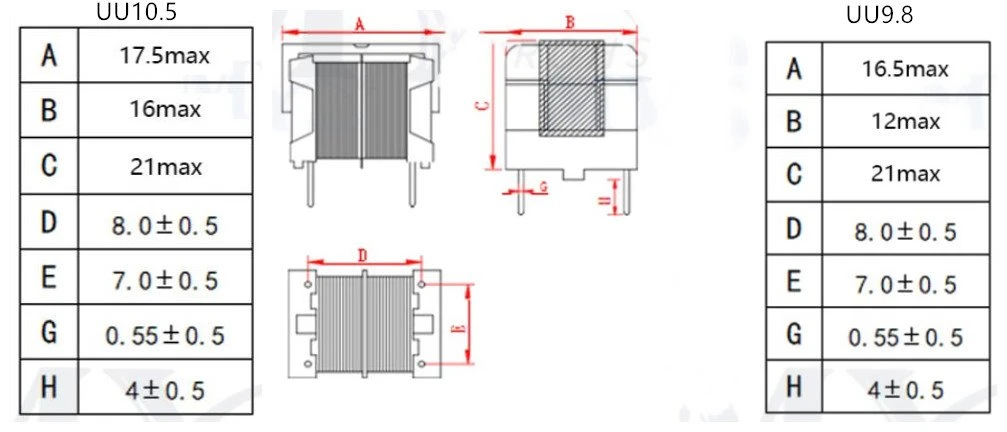

SHAPES AND DIMENSIONS:unit(mm)

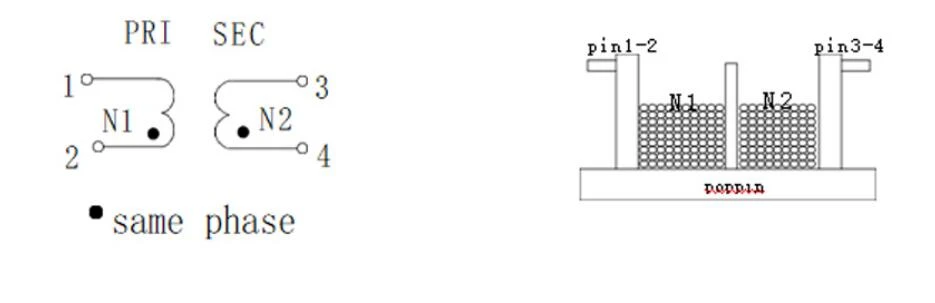

Principle and structure diagram

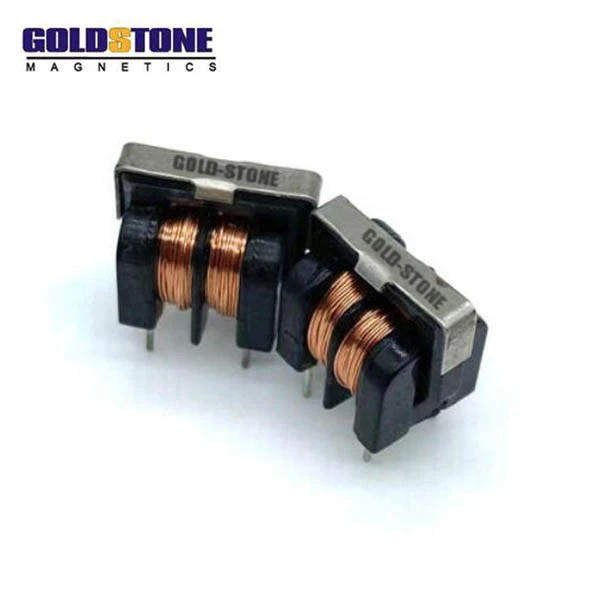

UU9.8,UU10.5 Show details:

1. Multi-sensory low profile,

space saving, using

Nickel-zinc ferrite core,

2. Double line winding,

High frequency wave is good.

Vertical horizontal can be custormed

Lagging; wrapping tape parallel

The closing is consistent; the steel clip is glued and sealed evenly

3.155°C high temperature pure copper wire,

The wire diameter can be determined;

Factory thick wire resistant to large electricity

flow, oil immersion drying

Not easy to oxidize.

U9.8,UU10.5  inductor applications

UU9.8,UU10.5 Common Mode Inductanceare often used in common mode filter inductors, drive transformers, current transformers, etc.

Package

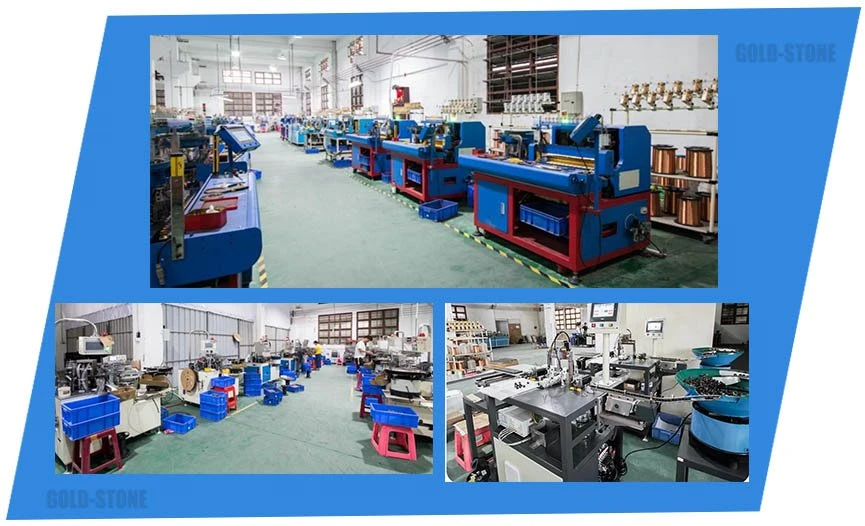

Factory Show
