It is a magnetic component processed with amorphous materials. According to the material of the amorphous strip used Similarly, it can be divided into iron based amorphous, cobalt based amorphous, and so on.
Description

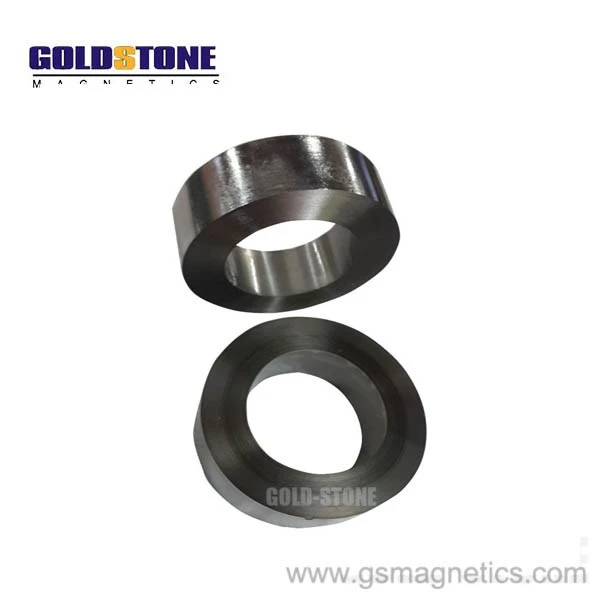

Amorphous magnetic ring,
It is a magnetic component processed with amorphous materials. According to the material of

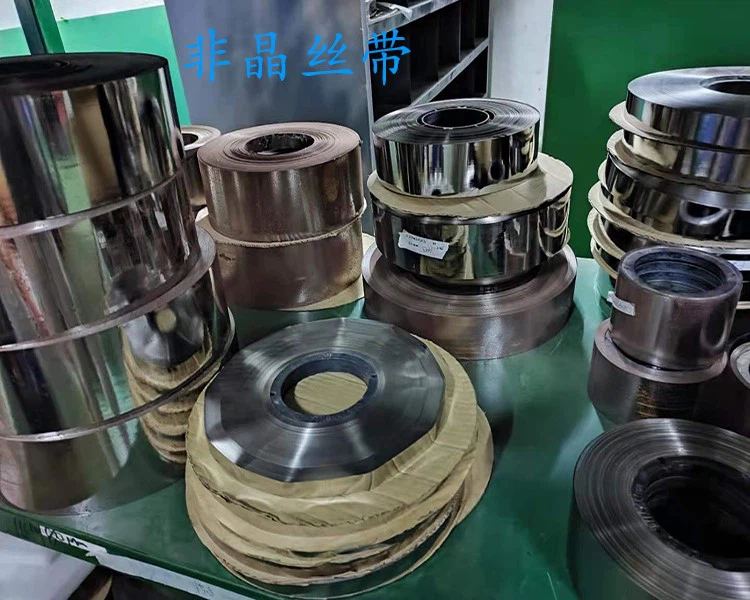

the amorphous strip used
Similarly, it can be divided into iron based amorphous, cobalt based amorphous, and so on.

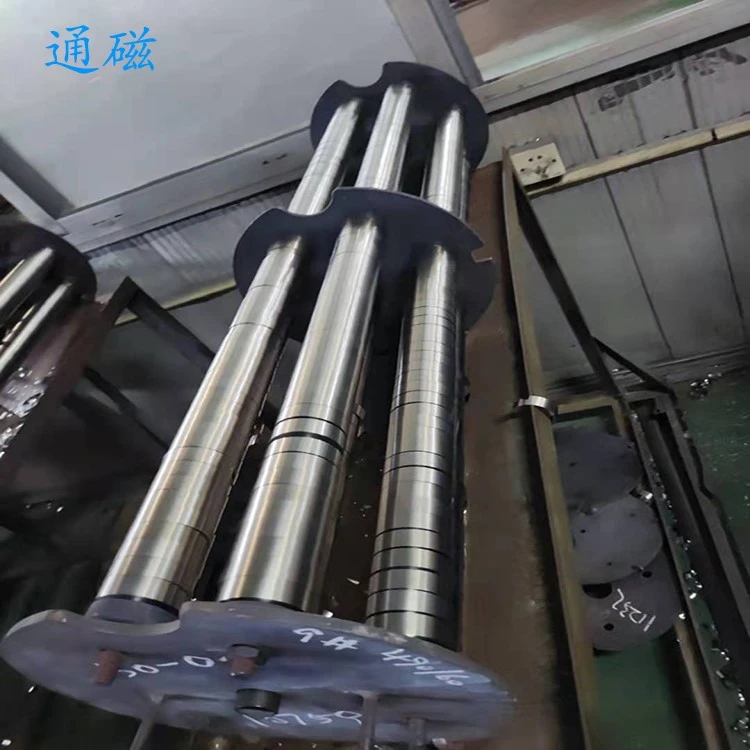

According to the shape of the material, it can be divided into strip type magnetic rings and powder type magnetic rings.

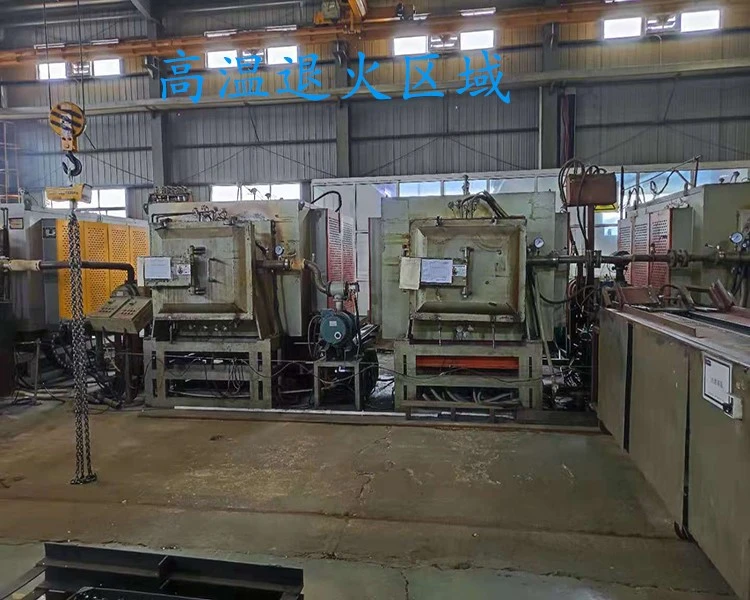

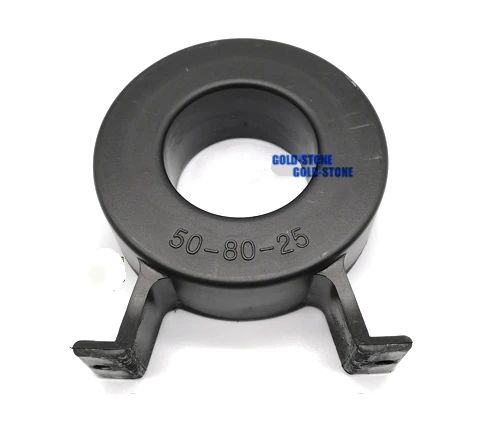

| Product name: Amorphous Nanocrystalline Magnetic Ring (50 * 80 * 25) |
Initial permeability: 50000 |
| Magnetic core size: outer diameter 80 * inner diameter 50 * height 25mm | Magnetic saturation strength: 1.25 |
| Soft magnetic material: iron based nanocrystalline alloy | Power: 6-10KW |
Remarks: Non magnetic, non strong magnetic
Other specifications of amorphous magnetic rings:

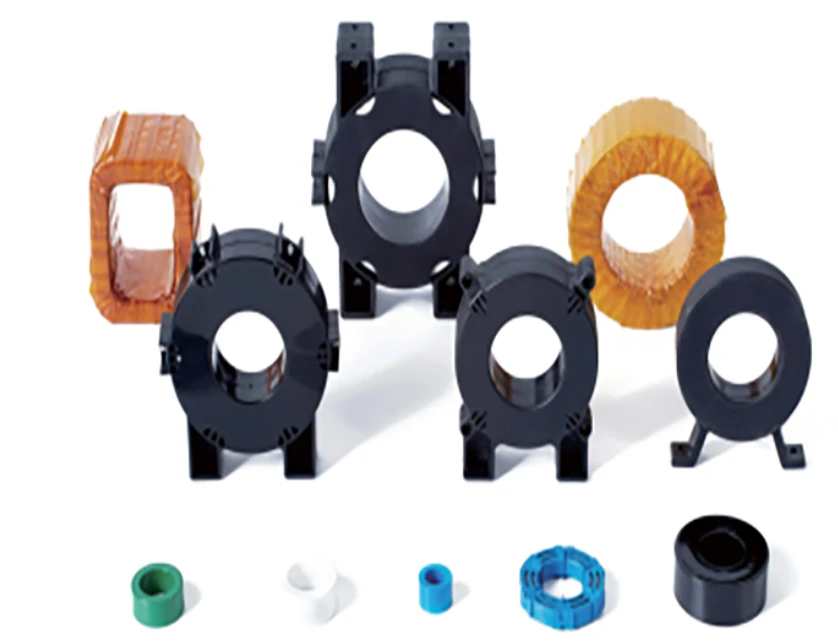

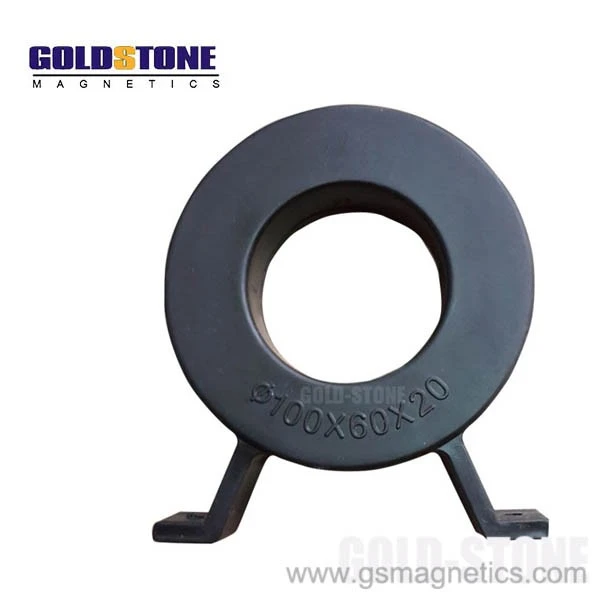

80 * 50 * 25MM amorphous magnetic ring
40 * 25 * 15mm amorphous magnetic ring
16 * 25 * 10mm amorphous magnetic ring

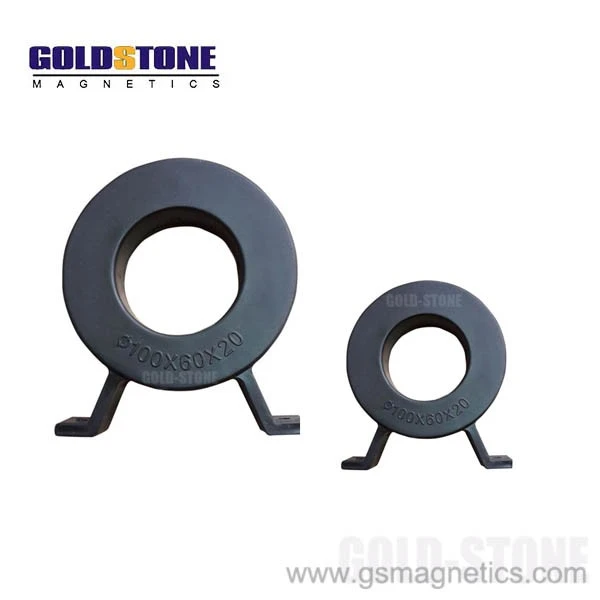

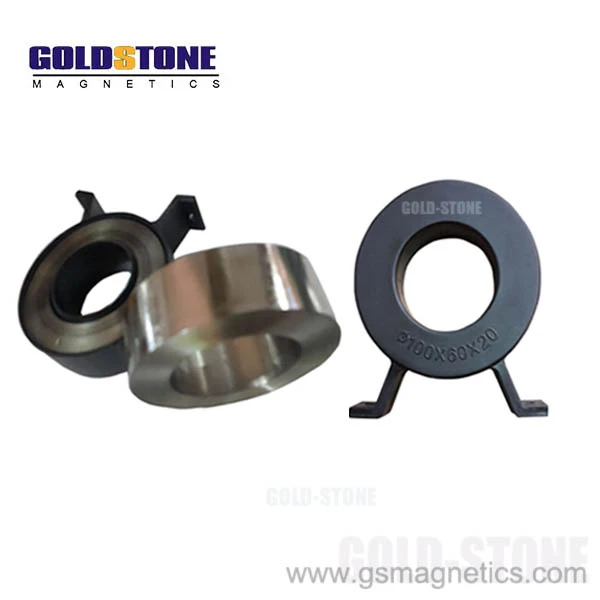

100 * 60 * 20MM amorphous magnetic ring
50 * 32 * 20MM amorphous magnetic ring
64 * 40 * 20MM amorphous magnetic ring
Performance characteristics
- High saturation magnetic induction intensity, the saturation magnetic induction of iron based nanocrystalline alloys is three times that of ferrite, and the output power of iron cores with the same volume is higher 2 times than that of ferrite core，At the same time, it has greater resistance to overload
- High permeability, low coercivity - improves transformer efficiency, reduces excitation power, and reduces copper loss. The permeability is more than 10 times that of ferrite.
- Low loss - reduces the temperature rise of the transformer, and its core loss in the frequency range of 20KHz-50KHZ is 1/2-1/5 of the ferrite loss.
Excellent temperature stability - can operate between -55-130C
Comparison of Performance between Iron Based Nanocrystalline Magnetic Core and Ferrite Magnetic Core
| Basic magnetic parameters | Nanocrystalline Iron Core | Ferrite Core |
| Saturated magnetic induction intensity Bs (T) | １.２５ | ０.５ |
| Residual Magnetic Induction Strength Br (T)(20KHZ) | ＜０．２ | ０．２０ |
| Iron Loss (20KH2Z/0.2T) (WKG) | ＜３．４ | ７．５ |
| Iron Loss (20KH2Z/0.2T) (WKG) | ＜２０ | |
| Iron Loss (20KH2Z/0.2T) (WKG) | ＜３５ | |
| Permeability (20KHZ) (Gs. 0e) | ＞５００００ | １２－２０００ |
| Coercive Force He (A/m) | ＜１．６ | ６ |
| Curie Temperature Tc (℃) | ５７０ | ＜２００ |
