Iron Based Nanocrystalline Iron Core For Common Mode Inductor NT100605E
Key Specifications/Special Features • High initial permeability, high output voltage, core size saving • Low core loss, good tolerance ability for large current impulse, good protection of tripping of high current • High curie temperature, good temperature stability (-55 to 130°C) Applications...
Description

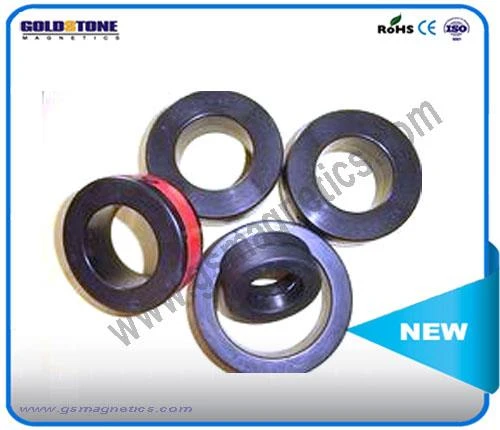

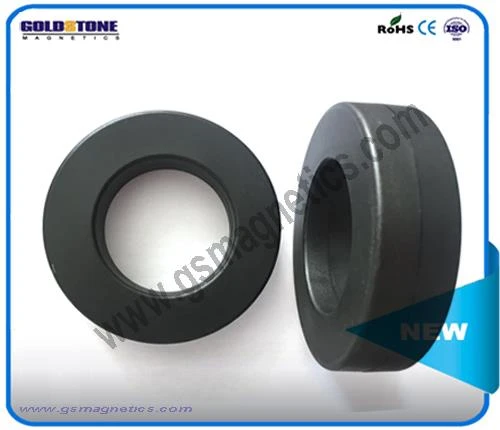

Iron based nanocrystalline iron core for common mode inductor
Texture of material:
Finemet

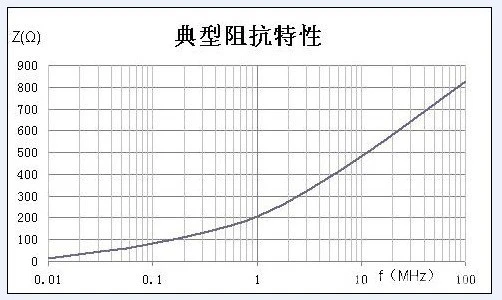

Performance characteristics:
High Curie temperature, suitable for high working temperature.
In the case of the same volume, a higher inductance can be obtained with fewer coils winding, resulting in a higher common mode attenuation in the low frequency range.
The same common mode attenuation can be obtained in the low frequency range when the number of loops is smaller or the volume of magnetic cores is smaller.
Fewer cycles make the distributed capacitance less, thus having better high-frequency performance.
Application area:
Common mode filter
| Product NO： | ||||||||
| Part Number | Size | OD(mm) | Ac | Le | AL@10kHz,0.3v(μH) | |||
| (mm) | OD max | ID min | H max | (cm2) | (cm) | Nomal | ||
| NT100605E | 9.8×6.5×4.5 | epoxy | 10.9 | 5.9 | 5.5 | 0.06 | 2.56 | 20 |
| NT120803P | 12×8×3 | case | 14.8 | 6.4 | 5.5 | 0.04 | 3.22 | 12 |
| NT120804P | 12×8×4.5 | case | 13.5 | 6.5 | 6.5 | 0.07 | 3.14 | 20 |
| NT201208P | 20×12×8 | case | 21.8 | 10.6 | 10 | 0.24 | 5.02 | 45 |
| NT201210P | 20×12×10 | case | 21.8 | 10.6 | 12.1 | 0.30 | 5.02 | 55 |
| NT251608E | 25×16×8 | epoxy | 26 | 15.2 | 8.9 | 0.27 | 6.44 | 40 |
| NT261610P | 26×16×10 | case | 27.5 | 13.9 | 12.5 | 0.38 | 6.59 | 53 |
| NT322010P | 32×20×10 | case | 34.2 | 17.8 | 12.5 | 0.46 | 8.16 | 50 |
| NT402510P | 40×25×10 | case | 42.5 | 22.5 | 13 | 0.57 | 10.21 | 53 |
| NT403215P | 40×32×15 | case | 44.3 | 29.2 | 17.8 | 0.46 | 11.30 | 37 |
| NT403215E | 40×32×15 | epoxy | 42.2 | 31 | 17.6 | 0.46 | 11.30 | 30 |
| NT644020P | 64×40×20 | case | 67 | 37 | 24 | 1.82 | 16.33 | 100 |
| NT644020E | 64×40×20 | epoxy | 65.8 | 38.8 | 22.4 | 1.82 | 16.33 | 85 |
| NT805025P | 80×50×25 | case | 84 | 46.8 | 29.2 | 2.85 | 20.41 | 130 |
| NT805025E | 80×50×25 | epoxy | 83 | 48 | 27 | 2.85 | 20.41 | 115 |
| NT1008020E | 100×80×20 | epoxy | 105 | 76 | 25 | 1.52 | 28.26 | 48 |
| NT1259025E | 125×90×25 | case | 130 | 85 | 30 | 3.33 | 33.76 | 85 |
| NT16013025E | 160×130×25 | epoxy | 165 | 125 | 29 | 2.85 | 45.53 | 50 |
