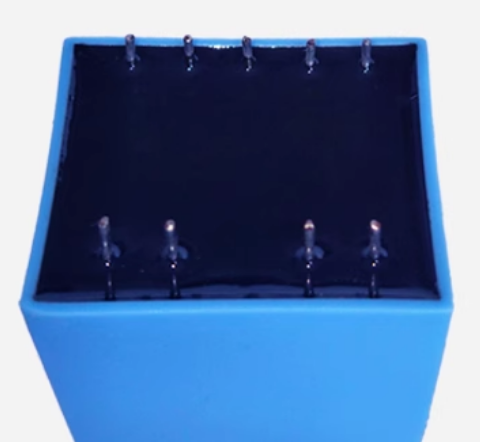

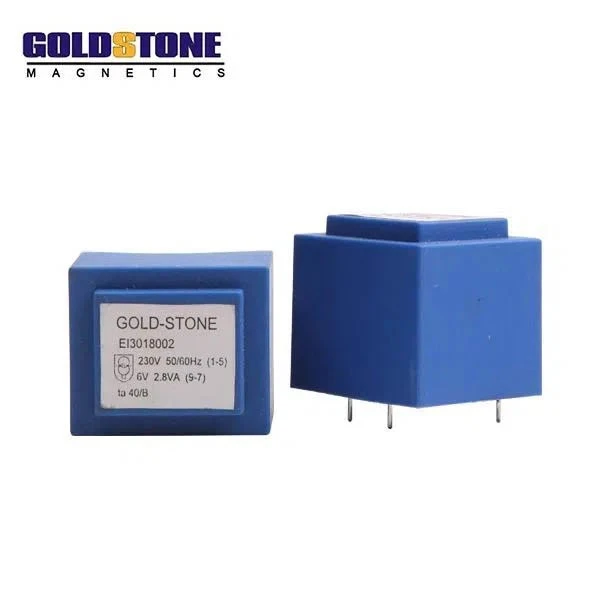

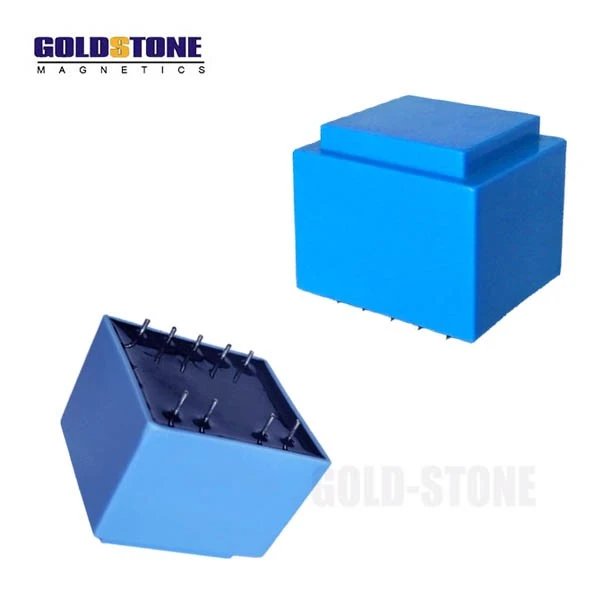

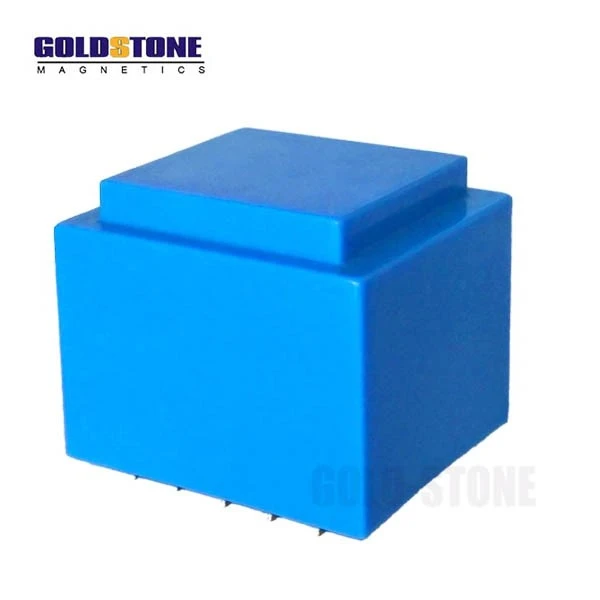

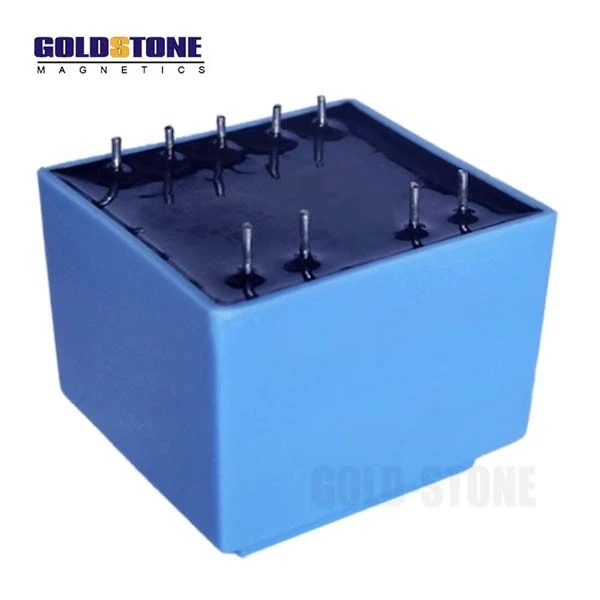

Encapsulated Transformer Pin PCB Board Sealing Epoxy

Encapsulated Transformer Pin PCB Board Sealing Epoxy
Encapsulated Transformer Pin PCB Board Sealing Epoxy
Encapsulated Transformer Pin PCB Board Sealing Epoxy
Encapsulated Transformer Pin PCB Board Sealing Epoxy

Encapsulated Transformer Pin PCB Board Sealing Epoxy

Type: EI30/18 2.3VA/2.8VA
1.CE approved
2.Potted under vacuum
3. Dielectric strength—4000Vrms
4.High ambient operation temperat4.ure(＋70℃max)
5.Insulation class—Class B(130℃)
6.Short-circuit-proof

Send Inquiry Chat Now

Description

Products Description

Encapsulated transformer is a type of transformer that is used in different environments and undergoes overall epoxy encapsulation after testing. It has advantages such as moisture-proof, explosion-proof, and anti-interference, while epoxy resin itself has the function of heat dissipation, so there is no need to worry about poor transformer heat dissipation and no increase in temperature rise. SMD encapsulated transformer is a high-strength structure, which is entirely made of epoxy resin poured in vacuum and cured. It has the characteristics of fine size optimization, high electrical strength, strong flame retardancy, and high degree of automation application

why choose us

On demand customization
Direct deal
Quality assurance
Integrity management
Output sufficient power without false calibration
Temperature level B, reaching 130 degrees Celsius

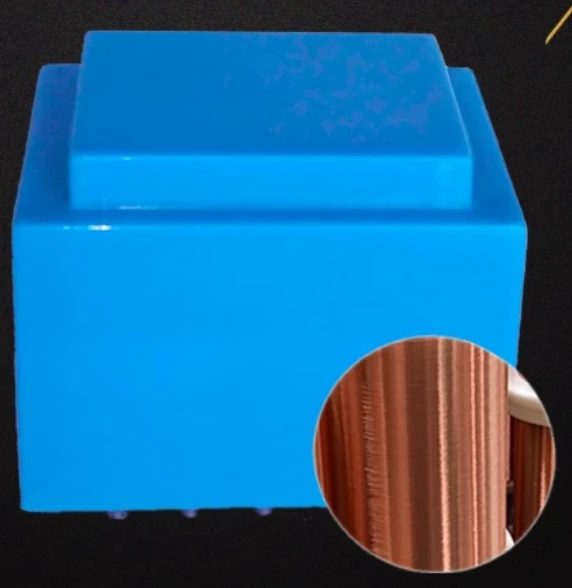

All copper enameled wire

2，Using best quality bobbins，Insulation, isolation, high temperature resistance, anti leakage, safer use

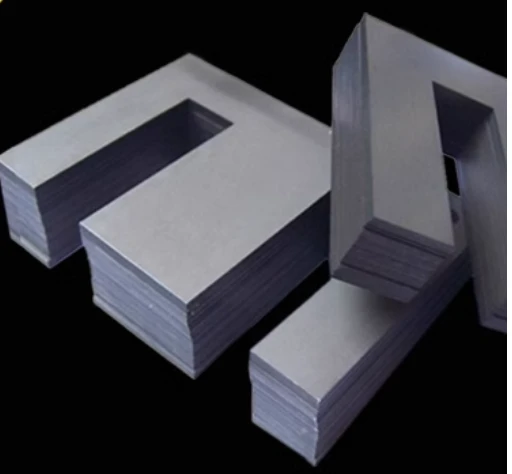

3，High permeability silicon steel sheet
Good magnetic circuit characteristics, high efficiency, low no-load current

Low temperature rise, high efficiency, and strong load capacity.
4，Sealing epoxy resin for waterproofing, moisture resistance, and corrosion resistance

The customization instructions require the following parameters:

Power (capacity) W (VA);
Input voltage, output voltage;
The output is multiple sets of current or power that need to be provided for each set of voltage;
External dimensions and other requirements.
Customized prices and delivery times need to be confirmed.

Product description

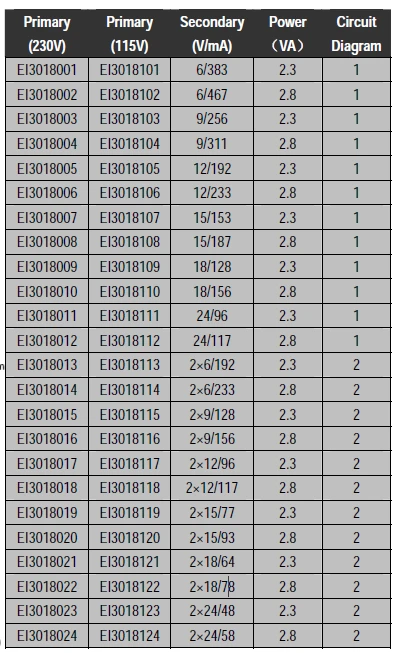

Type: EI30/18 2.3VA/2.8VA
