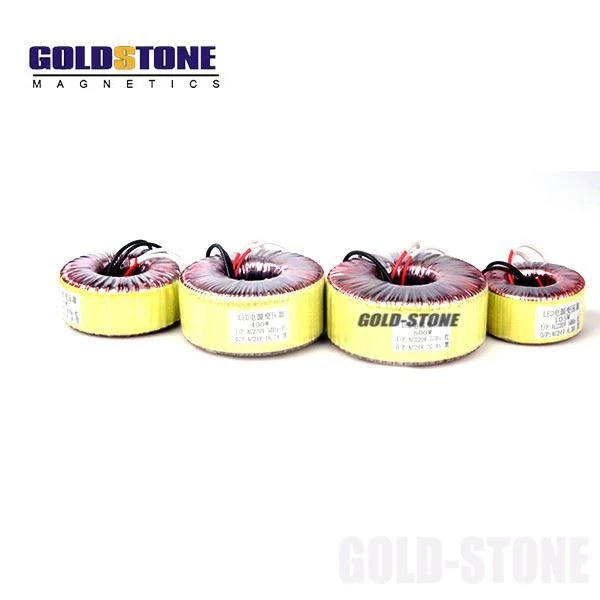

Ring Transformer

When selecting the ring transformer
The power of the ring transformer shall be determined according to the voltage
current usage of the load

Send Inquiry Chat Now

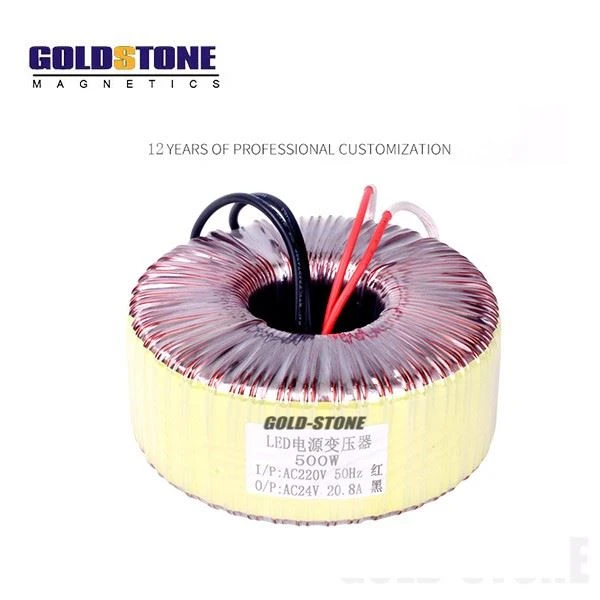

Description

When selecting the ring transformer, the power of the ring transformer shall be determined according to the voltage and current usage of the load. The nominal output current of the ring transformer is the output current at full load. In case of overload, the ring transformer can output more than 30% of the rated current.
Product specification

Rated Power	105W (Max)	Roltage strength	PRI-SEC: DC2500V
Rated frequency	50Hz/60Hz	Insulation impedance	PRI-SEC ≥500MQ
Input voltage	AC 220V±10%	Input leads	Ul1672-18 # 0.22 m red-red
Output voltage	AC24V ±0.5 V	output leads	Ul1015-16 # 0.22 m black-black
Output current	4.38A (MAX)	Net weight	≈1.1 kg
No-load loss & LT	1.5 W	Protection device	Optional

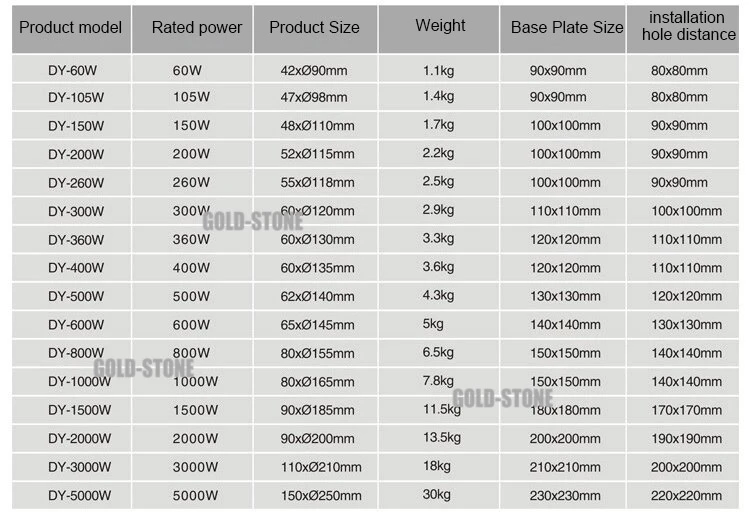

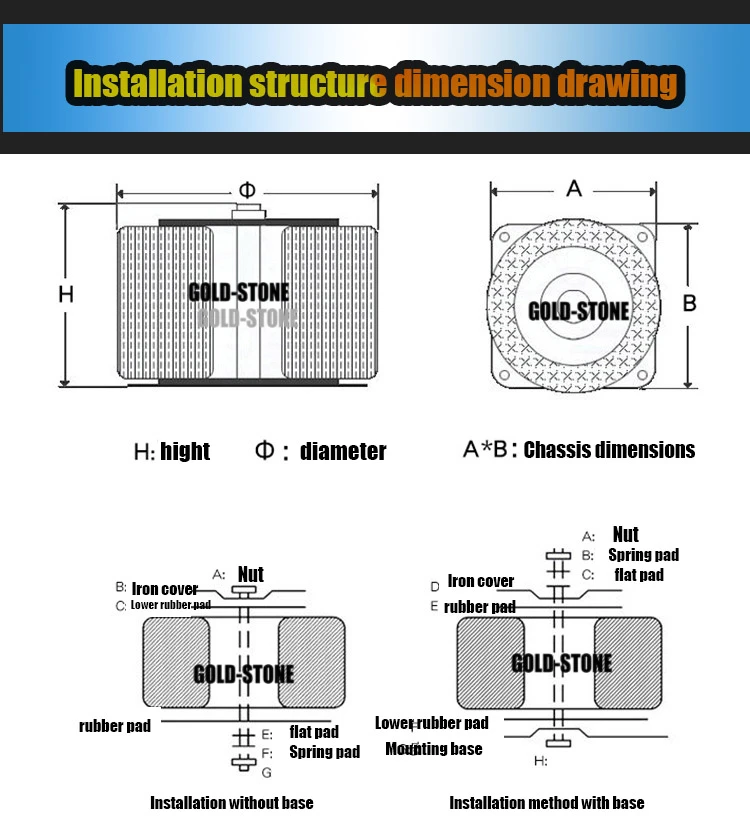

dimension datasheet

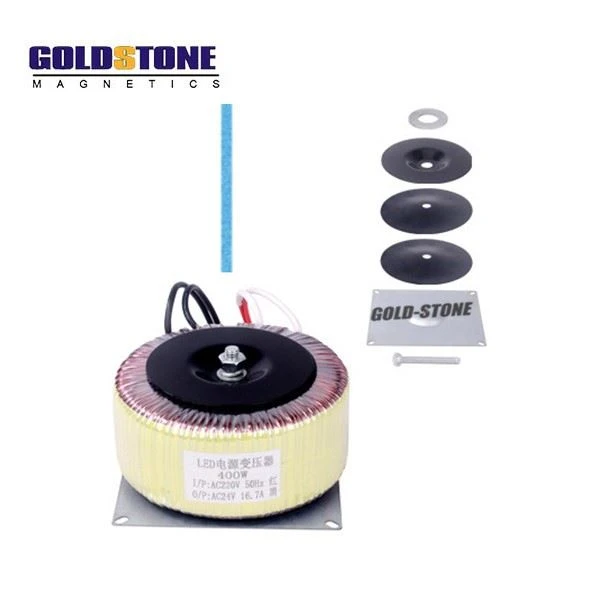

Product details

good insulation performance
high flux iron core smooth smooth small gap,
low noise, small interference, efficient

Good quality from material selection to make a good product

High-quality copper wire double-layer insulation，high strength, good stability.

temperature resistance up to 130c
US Dupont insulating film polymer PETpolyester film

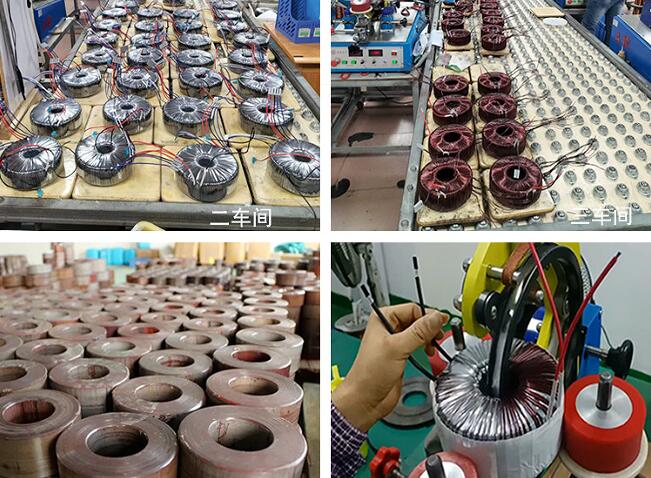

Standard winding process standard winding copper wire, close, smooth and good stability, longer service life

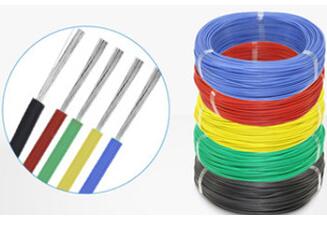

RV high-temperature lead national standard copper
multi-core wire
high-temperature resistance, tinning
non-oxidation

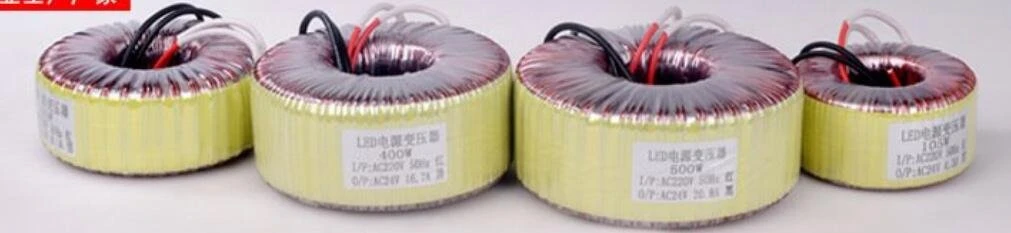

Applications

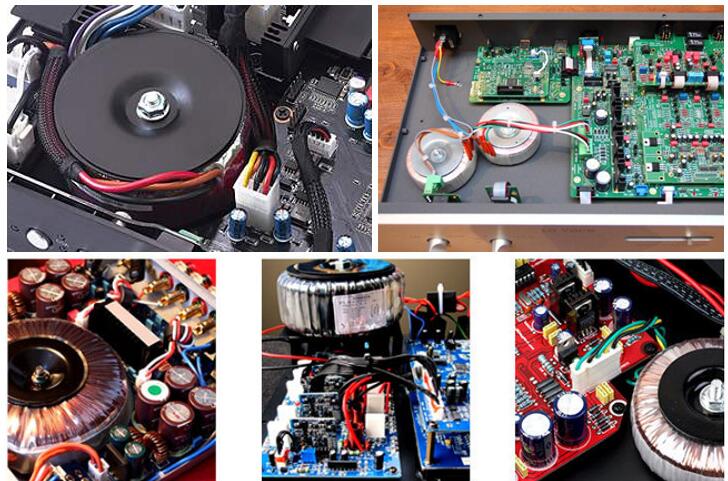

Ring transformer has the advantages of small volume, low noise, low heat generation and high conversion efficiency. It has been more and more used in industrial automation equipment, instrumentation, petrochemical, medical and health, agricultural production, mechanical processing, scientific research, military industry, household appliances, etc. The ring transformer, especially in the application of stepping motor power supply, shows excellent performance, far exceeding the performance of U-type and E-type transformers.
The performance and application of ring transformer are briefly introduced below.
apply

Package

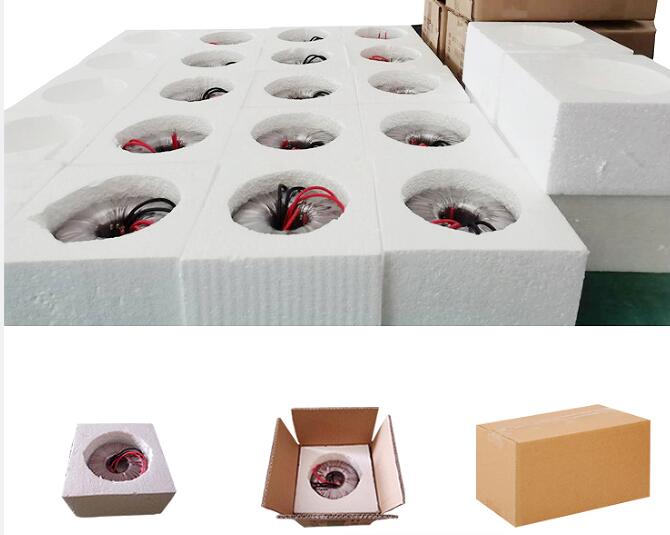

Multi-layer protection, more safe transportation
Anti-shock foam packaging, three-layer carton packaging, with foam inside,
thickened anti-shock foam,Inner box packaging: yellow box independent packaging
Outer box: thickened anti-fall outer box
package
