PQtype High Frequncy Transfomer

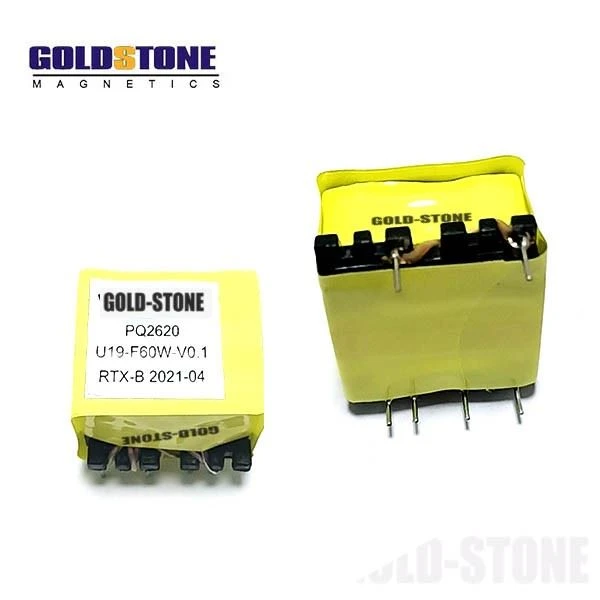

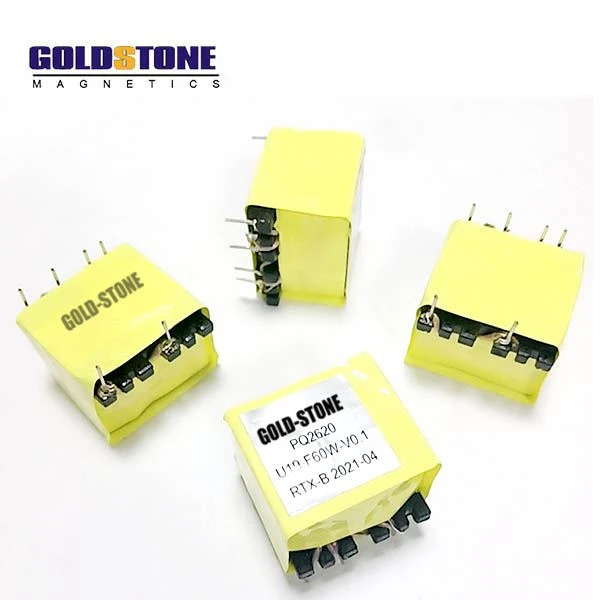

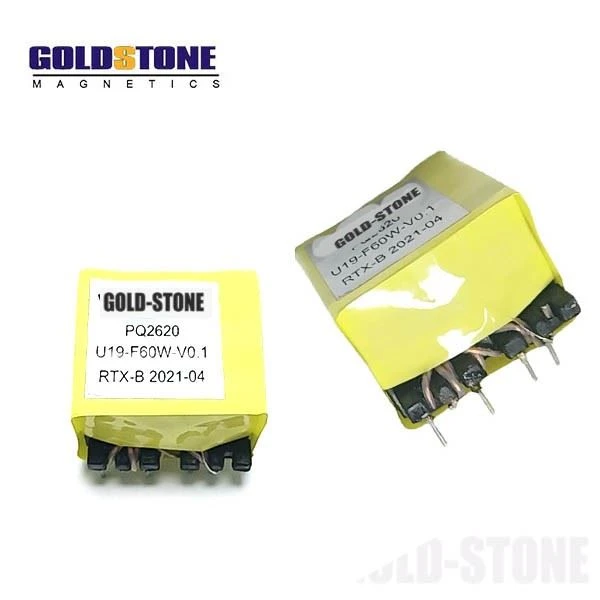

PQ2620 high frequency transformer
1. Operating Frequency 20 khz-500 KHZ2.
Output Power 10W to 1000W
3. The operating temperature is -40 ° C to + 180 ° C
4. Storage temperature-25 ° C to + 85 ° C
5. Storage humidity 30 to 95%
Description
PQ type high frequency transformer has the characteristics of compact structure, large power, moderate price and high reliability.
The core of PQ type high frequency transformer is a ferrite core designed to meet the requirements of new type switching power supply. Its shape can meet the requirements of reducing copper loss and iron loss of switching power supply transformer working at high frequency. It can also meet the requirements of switching power supply in terms of temperature rise.
PQtype high frequency transformer performance
1. Operating Frequency 20 khz-500 KHZ
2. Output Power 10 to 1000 W
3. The operating temperature is -40 ° C to + 180 ° C
4. Storage temperature-25 ° C to + 85 ° C 5. Storage humidity 30 to 95%

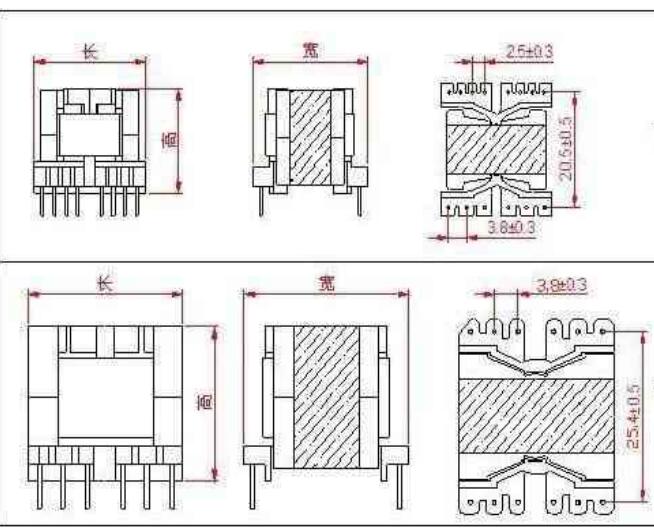

PQtype 2620 high frequency transformer size and appearance diagram /unit mm
| Name | type | length | width | height | 1 side PIN | 2 side PIN | row PIN | Pin distance |
| PQ2620 | skeleton style | 28 | 31 | 22 | 6 / 3.8 | 6 / 3.8 | 25.4 | φ0.6 |
Application of PQ2620 high frequency transformer
PQType high frequency transformer is often used in electric vehicle charger transformer, DC-DC converter, drive transformer, notebook power supply, inverter power supply, UPS Power Supply, communication power supply and so on
Working Procedure
PQ type high frequncy transformer have many partnumbers, so if you have any interested, welcome contact us or email,thanks in advance.
