Iron Powder Core

Shaanxi Gold-Stone Electronics Co.,Ltd is one of the leading iron powder core manufacturers and suppliers, welcome to buy high quality iron powder core, toroidal iron powder core, e type iron powder core, cylinder type iron powder core, drum type iron powder core products from our factory.

Different sizes

Iron powder cores

RoHs compliance

Different sizes and material including 2, 8/90, 18, 26, 38, 40,52 can be provide

Ferrite core / toroidal core / Iron powder core

Various type are availiable

High quality

With high-UI up to 12,000

With adjustable height

Outer diameter: 2.54 to 180mm

Available types:

RF carbonyl cores

Iron powder cores

Compatibility cross series

T Type:T25-1 T30-10  T38-8 T50-52DT51-2B T68-10 T72-8 T80-26B T94-26 T106-18BT 157-26 T224-52

       T300-26T400-52 T400-26B   T650-52.....

E Type:E13-8 E25-40A  E25-52A E43-2 E43-8 E56-33 E56-40 E77-52A.....

Iron Powder Core Catalog
Material Properties
Product Characteristics
Magnetic Characteristics Curves
Toroidal cores
T25-18  to  T40-52
T44-18  to  T57-52A
T60-18  to  T80-52
T80-18B  to  T106-52
T106-18A  to  T132-52
T141-26  to  T184-34
T184-35  to  T225-35
T225-40  to  T300-52
T300-18D  to  T400-40D
E Type Cores
E13-18  to  E35-26
E35-40  to  E57-26
E57-40  to  E114-52H
Plain cores
P3.45×19.7  to  P25.4×50.8

Specifications：

Iron powder core

1.Custom designs available

2.Factory direct price

3.Small orders acceptable

4. RoHS

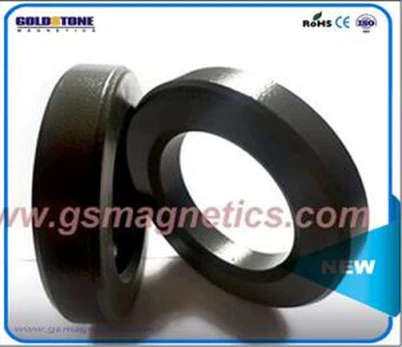

High quality Toroidal iron powder core D520-2D

Material Characteristics:

iron powder core is a kind of soft magerntic material which is composed of iron powder and insulating material.After insulating treatment,the iron powder is pressed into required shape and size and goes throuth heating,and coating sometimes.The evenly distributed gap inside the iron powder core is the main feature.

Features:

1.The maximum operating temperature of toroidal cores is 150oC.

2.The toroidal cores are coated with epoxy resin with minimum 500V AC breakdown.

3.The toroidal shape provides good magnetic flux coupling and low stray flux leakage.

4.The height of the toroidal shape (also referred as "thickness") is easy to vary and requires no tooling changes.

Applications:

1.This toroids products offer a simple, compact solution for making inductors, coupled inductors and transformers. RF circuits, EC power supply chokes, motors dimmer control filters.

2.We have accumulated abundant experience and established stable and credible business relationships with customers worldwide. With rich experience in dealing with all types of large and small orders, we have developed extensive contacts with many local and international freight organizations. Consequently, we are able to ship our goods safely and reliably to almost anywhere in the world.
