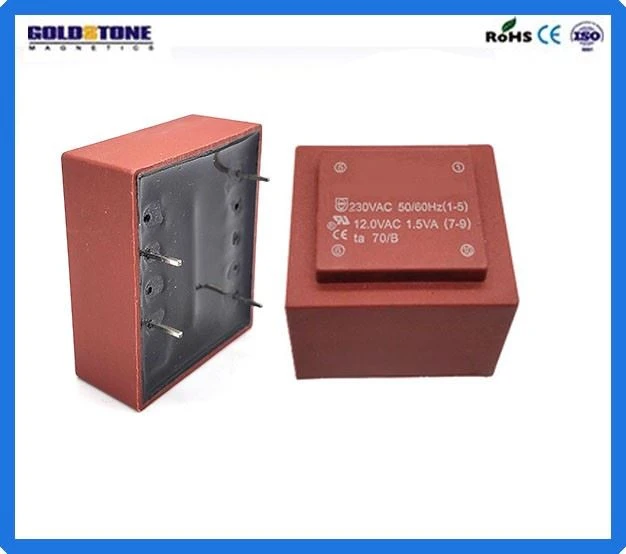

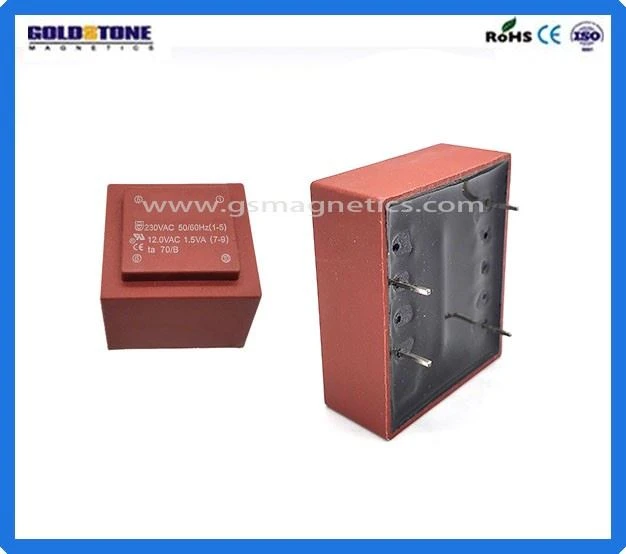

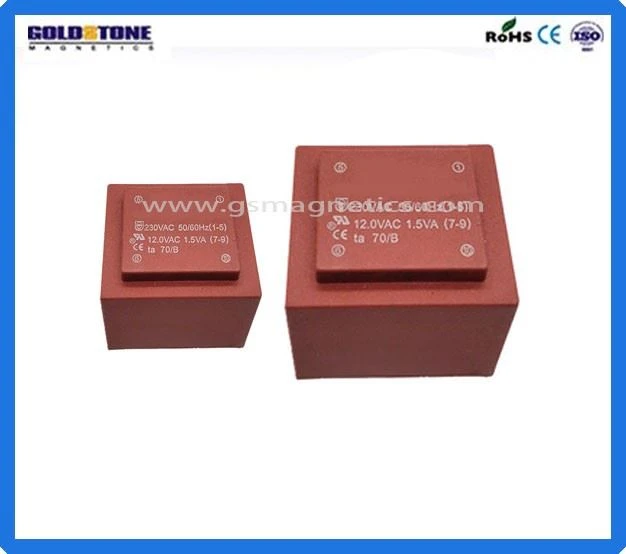

EI Pin Type Power Transformer Epoxy Encapsulated Transformer PCB Transformer Customization
video
EI Pin Type Power Transformer Epoxy Encapsulated Transformer PCB Transformer Customization

EI Pin Type Power Transformer Epoxy Encapsulated Transformer PCB Transformer Customization

high working efficiency< low power consumption Improve the utilization rate of the iron core and the effective power of the transformer

Send Inquiry

Description



EI60-21-23VA

Primary

(V)

Secondary

(V/mA)

No-Load

Voltage(V)

Part

Number

230

6/3833

7.00

EI60-23VA-01A

230

9/2555

10.30

EI60-23VA-02A

230

12/1916

13.70

EI60-23VA-03A

230

15/1533

17.10

EI60-23VA-04A

230

18/1276

20.50

EI60-23VA-05A

230

24/958

27.30

EI60-23VA-06A

230

2×6/1916

2×7.00

EI60-23VA-07A

230

2×9/1276

2×10.30

EI60-23VA-08A

230

2×12/958

2×13.70

EI60-23VA-09A

230

2×15/766

2×17.10

EI60-23VA-10A

230

2×18/638

2×20.50

EI60-23VA-11A

230

2×24/479

2×27.30

EI60-23VA-12A

115

6/3833

7.00

EI60-23VA-13A

115

9/2555

10.30

EI60-23VA-14A

115

12/1916

13.70

EI60-23VA-15A

115

15/1533

17.10

EI60-23VA-16A

115

18/1276

20.50

EI60-23VA-17A

115

24/958

27.30

EI60-23VA-18A

115

2×6/1916

2×7.00

EI60-23VA-19A

115

2×9/1276

2×10.30

EI60-23VA-20A

115

2×12/958

2×13.70

EI60-23VA-21A

115

2×15/766

2×17.10

EI60-23VA-22A

115

2×18/638

2×20.50

EI60-23VA-23A

115

2×24/479

2×27.30

EI60-23VA-24A

2×115

6/3833

7.00

EI60-23VA-25A

2×115

9/2555

10.30

EI60-23VA-26A

2×115

12/1916

13.70

EI60-23VA-27A

2×115

15/1533

17.10

EI60-23VA-28A

2×115

18/1276

20.50

EI60-23VA-29A

2×115

24/958

27.30

EI60-23VA-30A

2×115

2×6/1916

2×7.00

EI60-23VA-31A

2×115

2×9/1276

2×10.30

EI60-23VA-32A

2×115

2×12/958

2×13.70

EI60-23VA-33A

2×115

2×15/766

2×17.10

EI60-23VA-34A

2×115

2×18/638

2×20.50

EI60-23VA-35A

2×115

2×24/479

2×27.30

OEI60-23VA-36A

 -1

Frequency 50/60Hz

Split-bobbin

Temperature class ta 40℃/B

Weight: 0.58kg



       Mechanical






        Schematics

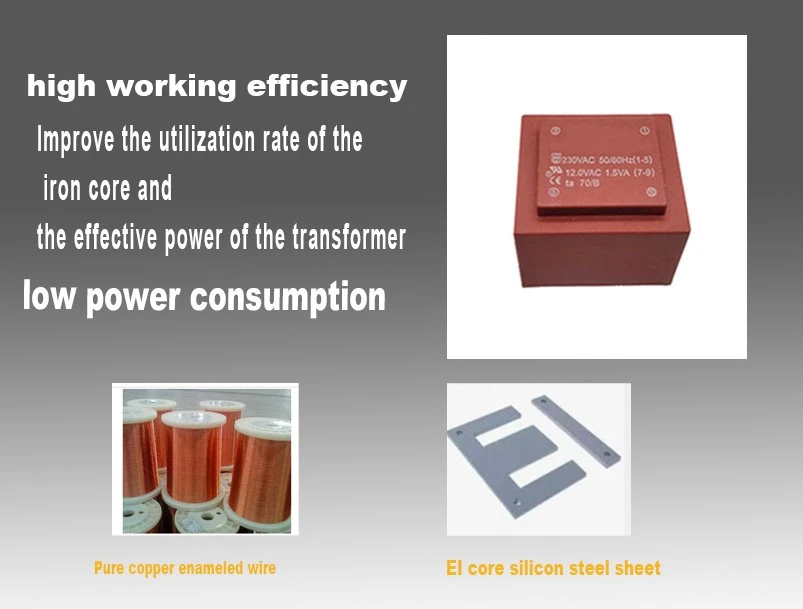

FEATURES

high working efficiency

low power consumption

Improve the utilization rate of the iron core and the effective power of the transformer

Mature technology◎

High cost performance, wide application, simple structure, long life

Long life, layered winding is completely isolated and safer

Silicon steel core◎

High magnetic permeability material, not easy to magnetic saturation, internal

Strong core guarantee output

Pure copper enameled wire

EI core silicon steel sheet
