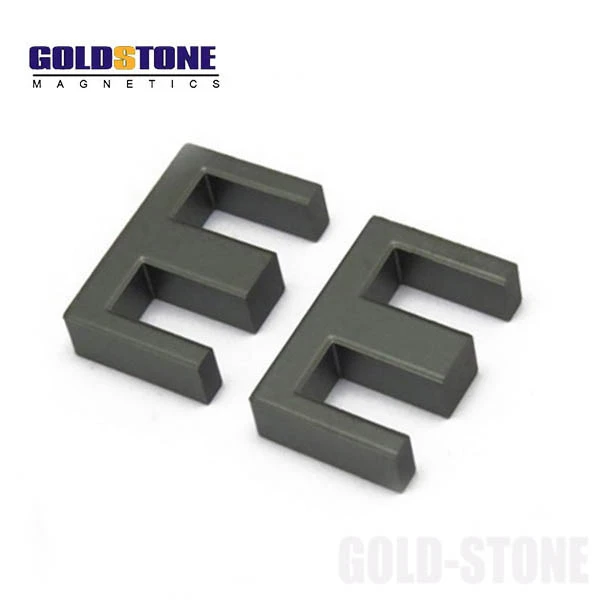

EE Type Ferrite Core

Ferrite  includes hard ferrite and soft ferrite. It is a very important type of magnetic material. The application of ferrite core is quite extensive. EE type ferrite core mainly used in the electronic information industry.
EE-type ferrite cores are mainly used for high-frequency transformers. According to the operating frequency, they can be divided into several grades: 10kHz-50kHz, 50kHz-100kHz, 100kHz-500kHz, 500kHz-1MHz, and above 1MHz.The products are used in electronic transformers. Magnetic components in devices such as inductors, choke coils, etc.
The following are the parameters of the magnetic cores we often produce. If necessary, please call or email.

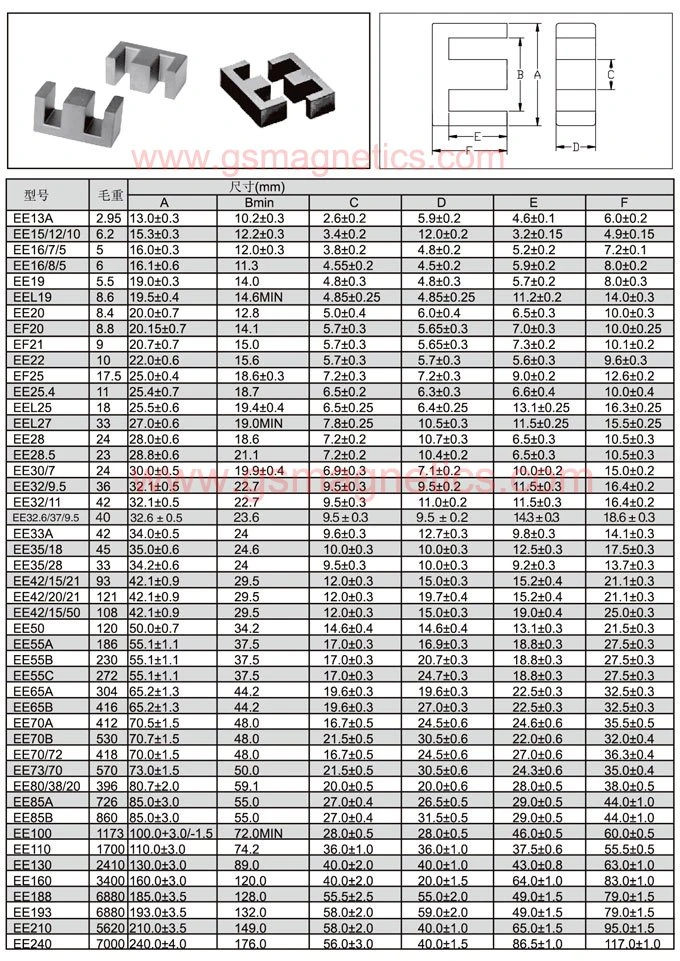

Dimension drawing

Of course,EE-type ferrite core is one of the most commonly used magnetic cores.

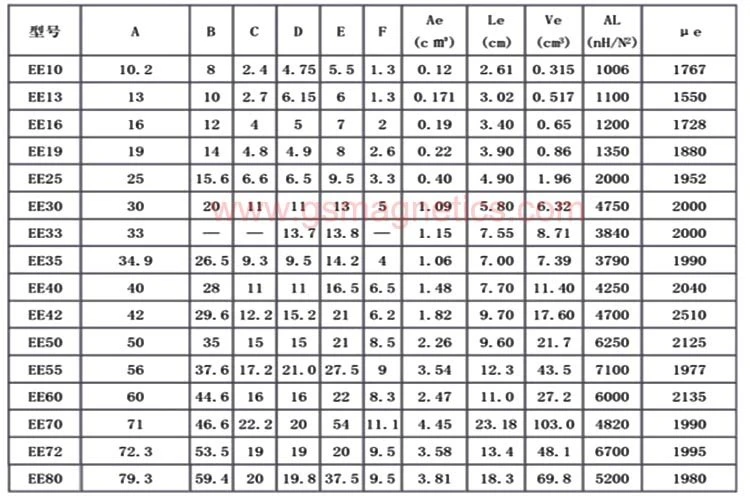

Displays and small transformers for small energy-saving lamps are all EE-type magnetic cores. our Ｅtype magnetic cores are very popular,EE10,EE13,EE16,EE19,EE25,EE30,EE35,EE40,EE42 to EE80etc ferrite core  and the magnetic cores often required by customers are as follows：

The EE-type core has a natural advantage because the air gap is in the middle of the center column, and the outer layer of the air gap is shielded by a thick winding. Due to the shielding effect of the winding itself, the possibility of leakage magnetic flux radiating to the outside space is greatly reduced.

Features of EEtype ferrite cores, EEL, EF-type power cores:

• large lead space,

• convenient winding and wiring.

• Wide application range,

• high operating frequency,

• wide operating voltage range,

• large output power, good thermal stability

  If you want to check more about Mn-Zn soft magnetics datasheet, Please check our all about datashet for MN-ZN type ferrite core https://www.gsmagnetics.com/mn-zn-ferrite-core



We are convenient in product packaging and also can accept customers' customized packaging

And our product EEtype ferrite core packaging is very strong, with three layers of corrugated paper, and then put into the plate to ensure that customers receive the product in good condition.
