Product name: nickel zinc ferrite removable magnetic ring ，ferrite  clamp

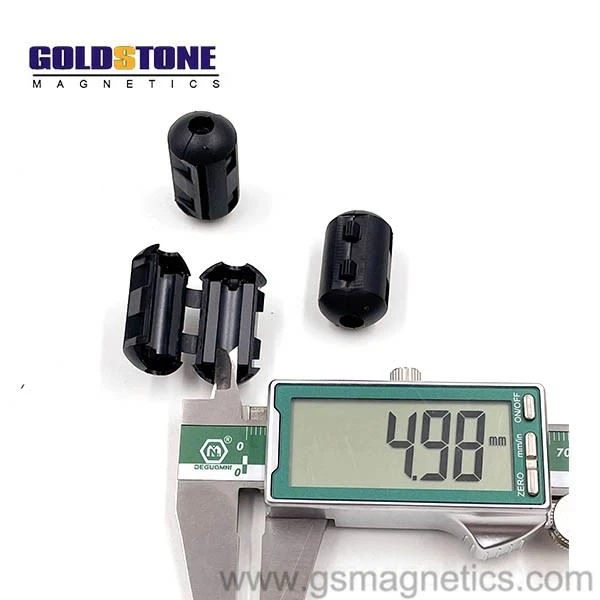

Inner diameter (ID): 5mm

Color: grey (natural color)
Commodity type: non magnet, non strong magnet

Specifications haven't been uploaded, please email directly

Ni- Zn magnetic ring products are used in computer display LCD TV, electrical data cable, flat flat cable, communication equipment cable, anti-interference filter cable, electrical flat cable, power cable, USB cable and other series of anti-interference effects.

How to use ferrite clamp?
A. Application of good electrical and mechanical design principles

First of all, EMC design is based on the application of good electrical and mechanical design principles. This includes reliability considerations, such as meeting design specifications within acceptable tolerances, good assembly methods, and various testing techniques under development.
Generally speaking, the device driving today's electronic equipment should be installed on the PCB. These devices are composed of components and circuits with potential interference sources and sensitive to electromagnetic energy.

Therefore, anti-interference magnetic ring is the next important problem in EMC design. The location of active components, routing of printed wires, impedance matching, grounding design and circuit filtering shall be considered in EMC design. Some PCB components also need to be shielded.

B. Connection of internal cables

Thirdly, internal cables are generally used to connect PCBs or other internal sub assemblies. Therefore, the EMC design of internal cables including routing method and shielding is very important for the overall EMC of any given device. After the EMC design and internal cable design of PCB are completed, special attention shall be paid to the shielding design of the enclosure and the treatment of all gaps, holes and cable through-hole.

C. After power supply and cable filter, input and output power supply and other cable filter problems shall also be considered.

IV. Use method of anti-interference magnetic ring:

Nickel zinc magnetic ring is often used to suppress the interference of power line and signal line, and also has the ability to absorb electrostatic pulse.

1. It is directly sleeved on one or a bunch of power supply and signal lines. In order to increase interference absorption energy, it can be repeatedly wound for several times;

2. The anti-interference magnetic ring with mounting clip is suitable for compensating anti-interference suppression;

3. It can be conveniently clamped on the power line and signal line;

4. Flexible, reusable installation;

5. It has its own card type fixation, which does not affect the overall image of the equipment.

Application:

Widely used in mobile phones, color TVs, displays, electric car chargers, alarms, DVDs, switching power supplies, UP power supplies, DC-DC converters, high-frequency transformers, filters, inductors, household appliances, industrial automation, instruments, communications, medical instruments, energy-saving lamps, etc
