ETD59 core matching steel clamp bobbins horizontal 12+12 transformer ferrite core with PC40 material
Leave a message
Name: ferrite core

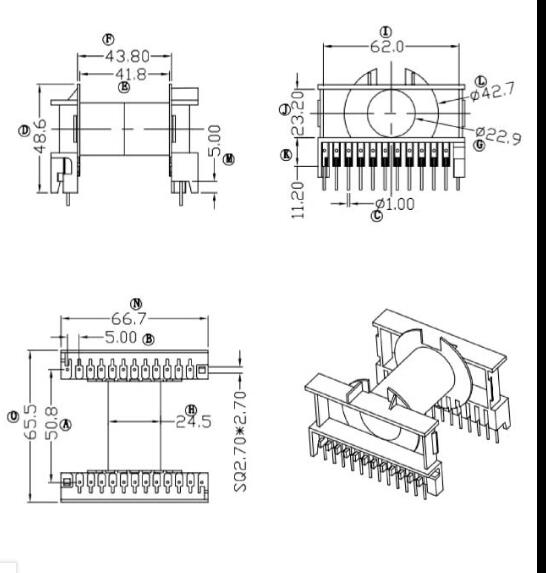

Model: ETD59 skeleton: horizontal 12+12
Material: PC40
Unit: one set (including magnetic core pair, skeleton and steel clip).
A:59.8mm B:43.6mm C:21.6mm D:21.6mm E:22.5mm F:31.0mm
Warm Tips:
1. Magnetic cores are sold by size and size, mm (mm), tolerance + -0.3mm
2, according to the size of the product description on the page, do not just imagine buying, if you do not know can consult customer service.
Three, the magnetic core is fragile, and must be careful when using. If there are any problems, please contact the processing.
Fourth, the core and skeleton for fragile goods packaging will be slower, we will shoot the next day for you to send out.
When you receive the goods, you must carefully check whether the package is in good condition and inspect the goods. If there is any breakage, you can refuse to sign and contact us. Once signed, it means that the goods are in good condition to your hands. If the goods are found again, the shop can not help you recover the loss!
1. Ferrite core is mainly composed of iron (Fe), manganese (Mn), and zinc (Zn) three metal elements, commonly known as manganese-zinc ferrite. Because the annular ferrite core has no air gap and the cross section area is uniform, the magnetic effect is very high.
2. Ferrite core coils can be made into inductors or transformers, which are widely used in instruments, communication equipment and household appliances. Ferrite cores have many material grades and various geometric shapes, such as columnar, I-shaped, cap-shaped, single-hole, double-hole, four-hole, U-shaped, can-shaped, E-shaped, EI-shaped, EC-shaped, RM-shaped, PQ-shaped, EP-shaped, as shown in the attached drawings. Each shape of the magnetic core is made of a series of users.
3. Ferrite cores are widely used in switching mode power supply (SMPS), radio frequency (RF) transformers and inductors because of their low magnetic loss at high frequencies. Ferrite cores of various shapes and sizes are used in inductors, pulse transformers, high frequency transformers, and noise filters for high frequency power supplies and high quality communications markets. Ferrite is characterized by high permeability, good temperature characteristics and low attenuation rate.
