EC42-15 copper push-pull inverter high frequency transformer double 12V 0-220V-380V 18V The primary winding of the secondary copper copper enameled wire power full custom welcome

EC42-15 copper push-pull inverter high frequency transformer double 12V 0-220V-380V 18V

The primary winding of the secondary copper copper enameled wire power full custom welcome

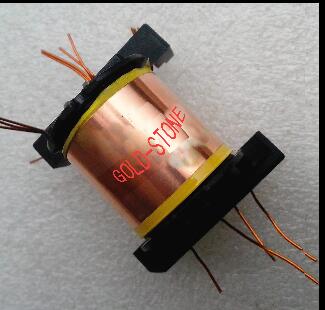

100% copper precision winding

Model: EC42/43-43 horizontal

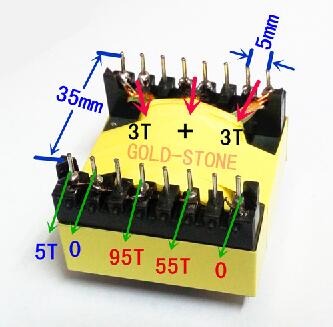

Foot position: 8+8 foot distance: 5MM row spacing: 35MM

Input voltage: 12V

Output voltage: 18V 0-220V-380V

Actual power: 500W

Weight: 0.15KG

Magnetic core volume: long 43MM* wide 43MM* high 15MM

Suitable frequency: 15KHZ-50KHZ

Primary foot position: 1 5--7 2--4 8

Sub pole position: 15--16 9--11--13

Primary wire diameter: 25*0.2MM 5 square copper skin

Sub polar diameter: 0.6MM

Number of primary turns: 3T+3T

Time - Number: 0+55T+40T 5T

Primary current: 45A sub pole current: 3A
