TP32D2402 TP SERIES Planar Transformers,High-power Planar Transformer,PCB Mounted Planar Transformer

TP32D2402 TP SERIES Planar Transformers,High-power Planar Transformer,PCB Mounted Planar Transformer

FEATURES: Power Rating Up to 100 Watts „ High Efficiency „ Footprint 20.12 mm X 18.50 mm „ Lower Profile of 7.4 mm „ High Isolation (operational) 1500 Vdc „ High Frequency 200 kHz – 700 kHz „ Operating Temperature -40ºC to +125ºC DESCRIPTION : The TP20A series of planar transformers are...

TP32D2402 TP SERIES Planar Transformers,High-power Planar Transformer,PCB Mounted Planar Transformer

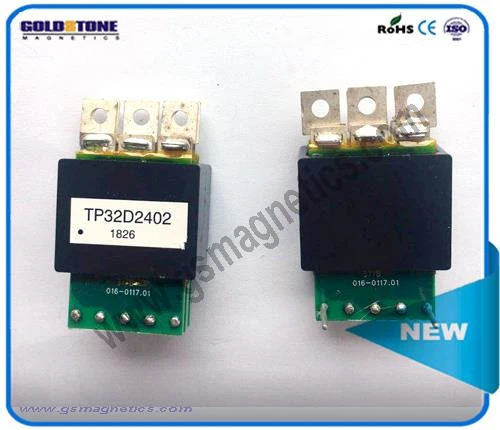

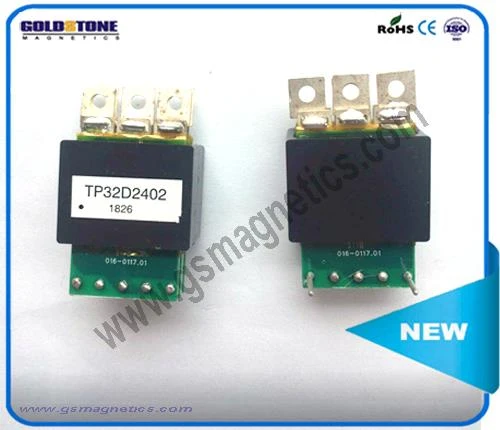

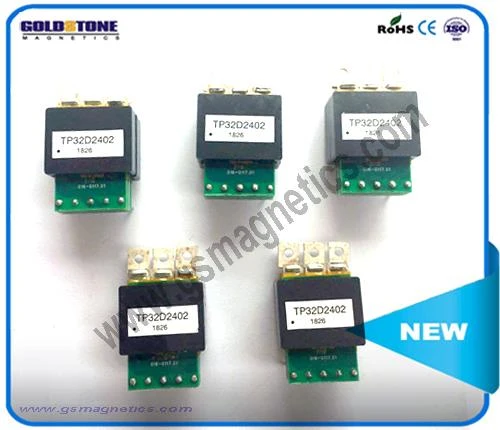

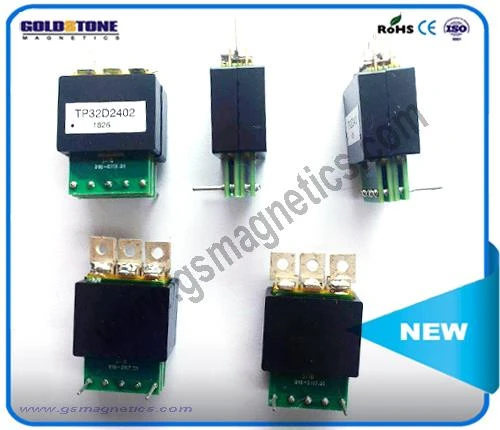

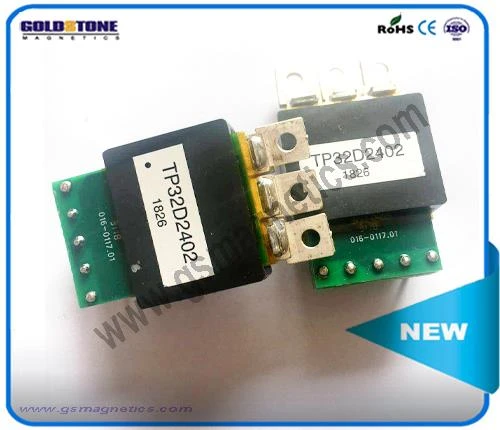

TP32D 01.jpgTP32D 02.jpgTP32D 03.jpgTP32D 04.jpgTP32D 05.jpg



FEATURES:


Power range: up to 1,500W

Key Specifications/Special Features:

Low-profile planar transformer

High-power planar transformer

High-frequency planar transformer

PCB planar transformer

PCB mounted planar transformer

Planar switching power transformer

EE14, EE16, EE18, EE22, EE32, EE38,

EE43, EE64 and EE100, EE150 planar

transformer

Off the shelf SMT planar transformer

Power range: up to 1,500W

Planar common mode choke

Planar power choke

Planar compensated choke

PFC planar choke

Planar line filter choke


 Applications:

-Switch mode power supplier (AC/DC, DC/DC)

-Telecom distributed power systems and rectifiers

-Industrial power systems

-Automotive 42V systems

-Welding inverters and battery chargers

-Avionics

-Space

-Missiles


2. GREWIN'S Models:

EE14, EE16, EE18, EE22, EE32, EE38, EE43, EE64 and EE100, EE150 planar transformer

Planar Transformer transformer compared with the traditional three-dimensional, the biggest difference

between them is the core and coil windings.

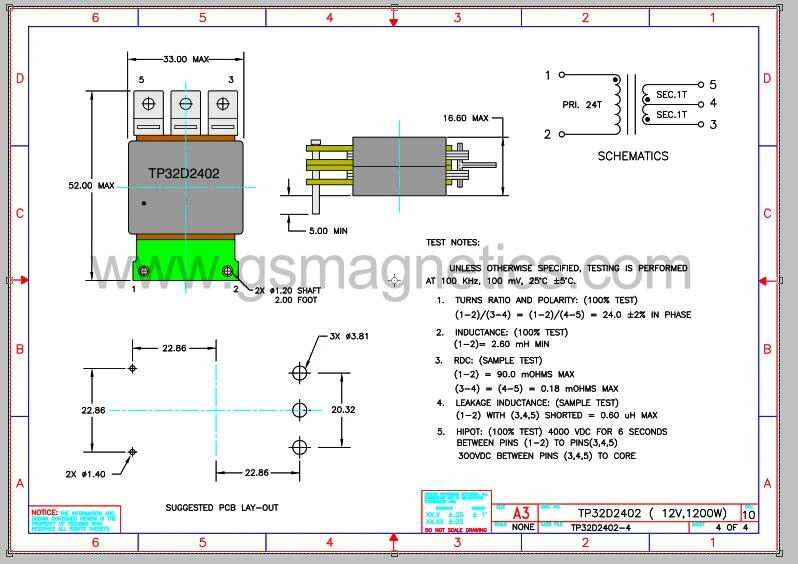

 DESCRIPTION :TP32Ddatasheet.jpg
