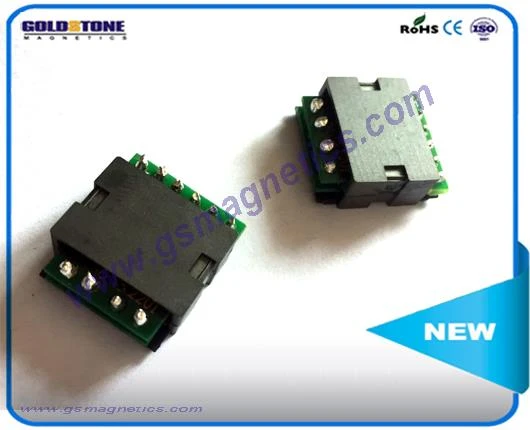

TP20A SERIES High Frequency 100 Watts Planar Transformers

TP20A SERIES High Frequency 100 Watts Planar Transformers

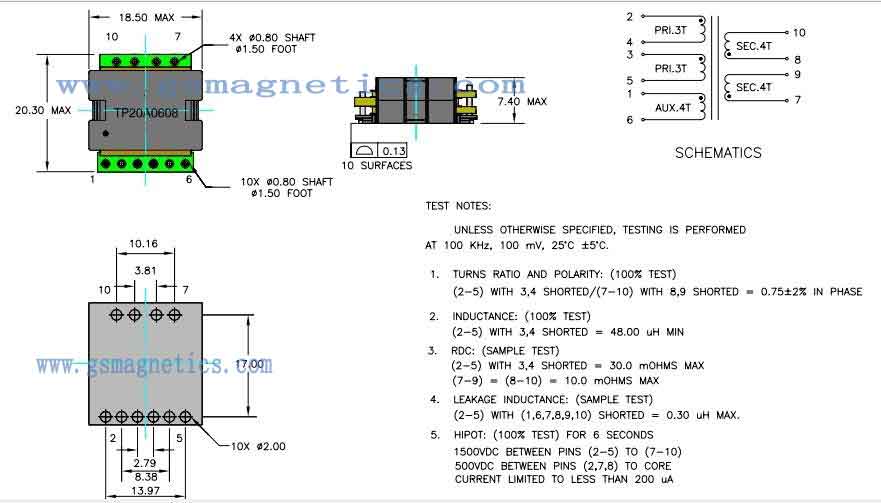

FEATURES: Power Rating Up to 100 Watts „ High Efficiency „ Footprint 20.12 mm X 18.50 mm „ Lower Profile of 7.4 mm „ High Isolation (operational) 1500 Vdc „ High Frequency 200 kHz – 700 kHz „ Operating Temperature -40ºC to +125ºC DESCRIPTION : The TP20A series of planar transformers are...

FEATURES:


Power Rating Up to 100 Watts

 „ High Efficiency „

Footprint 20.12 mm X 18.50 mm

 „ Lower Profile of 7.4 mm

„ High Isolation (operational) 1500 Vdc „

High Frequency 200 kHz – 700 kHz „

Operating Temperature -40ºC to +125ºC

 DESCRIPTION :


The TP20A series of planar transformers are optimised for power supplies of high performance DC/DC converters. Due to an optimised core, winding geometry and interleaving technology, they are able to offer a high efficiencies up to over 98 percent, high power density of 500 watts per cubic inch, but lower profile of 6.60 mm. The series consist of 12 part numbers, they are intended for use of DC/DC converters with forward, full-bridge, half-bridge and push – pull power supplies. Topologies in application with input voltages between 18 and 75 volts, and output voltages from 18 volts down to 1.2 volts.
