EE Type Ferrite Core,MnZn Soft Magnet Ferrite Core

EE Type Ferrite Core,MnZn Soft Magnet Ferrite Core

Available materials: Mn-Zn
Low loss and high saturation flux density
Provide EE,EC,EFD,EI,EP,EPC,ET&FT,H ,P,PEE&PEI ,PM,,RM,UF,UYF,UY AR.DS etc series ferrite core

Shaanxi Gold-Stone Electronics Co.,Ltd is one of the leading mn-zn ferrite core manufacturers and suppliers, welcome to buy high quality mn-zn ferrite core, ec type mn-zn ferrite core, ee type mn-zn ferrite core, efd type mn-zn ferrite core, ei type mn-zn ferrite core, pq type mn-zn ferrite core products from our factory.

Features:


1) Good anti-corrosion performance, no need to surface treatment.

2) Good temperature stability

3) Good choice for industrial application

4) All shapes can be customized

5) Compact crystal

6) provid isotropic and anisotropic

7) OEM service

8)Available materials: Mn-Zn power ferrite P30/P40/P44/P50/P95/H5K/H7K/H10K.H15K

 Applications:


Consume electronic

InverterPFC and UPS

Switch mode power supply

Ammeter, audio, phone, TV, dynamo, Motors, Meters, Speakers, Sensors, Medical Machine prducts, Magnetic Sport products, etce

Specification


 Ferrite core Dimension types: EFD,EI,EP,EPC,ET&FT,H ,P,PEE&PEI ,PM,,RM,UF,UYF,UY AR.DS etc series ferrite core .High frequency and low-loss ferrite cores

EC Type Ferrite core :EC28 EC35 EC43  EC39 EC54 EC59.....

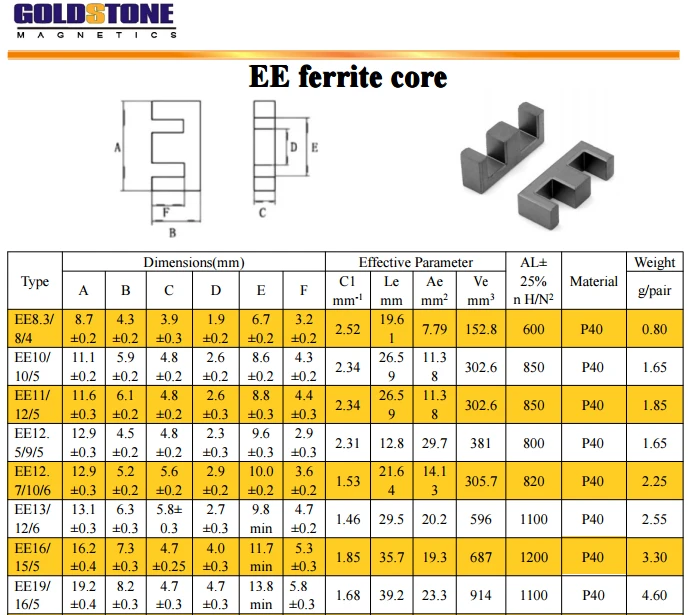

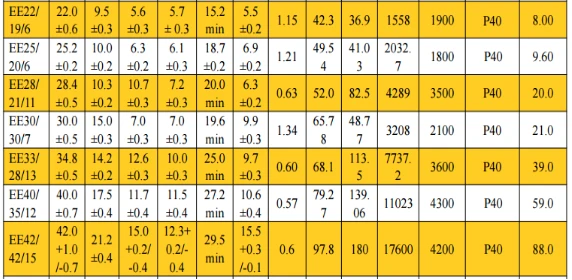

EEType Ferrite core :EE5,EE8.3,EE10,EE12,EE13,EE16,EE16A,EF16,EF16A,EE19,EF20,EE20,EE22,EE25,EF25,EE28,EE28A,EE28B,EE30,EE33,EE35,EE35A

EE40 EE42 ..... EE55.EE65,EE70.EE85,EE120.EE130.EE160.EE220.EE180 .

EFD Type ferrite core : EFD15 EFD25 EFD21 EFD31.....

EI Type ferrite core :EI28 EI33 EI40 EI40B.....

PQ Type ferrite core :PQ20/16, PQ20/20, PQ26/20, PQ26/25, PQ32/20,PQ32/30, PQ35/35, PQ40/40 and PQ50/50

PM Type ferrite core :PM50.PM62.PM74.PM87. PM114

PEE and PEI Type ferrite core :PEE1407.PEE1808.PEE2211.PEE3213.PEE3817 .PEE4319 .PEE5821 .PEE1405.PEI1806.PEI3812.PEI4314.PEI5815

RM Type ferrite core : RM4.RM5.RM6.RM8.RM10,RM12.RM14 .

EP Type ferrite core :EP7.EP10.EP13 .EP17.EP20.EP30 .

EPC Type ferrite core : EPC13  EPC17. EPC19 . EPC25.EPC25.EPC27.EPC30.EPC39 .

UF Type ferrite core :UF9.8 ,UF10.5,UF15 ,UF15.2,UF15.7,UF16,UF17,UF19,UF25,UF30,UF33,UF64,UF65,UF80A,UF80B,UF93,UF96,UF100,UF105A,UF120A ,UF120B .

UYF Type ferrite core :UYF9.6, UYF10,UYF11.5,UYF12 ,UYF12.5, UYF13,UYF16.UY17,UYF15 ,UY70 .

Pot Type ferrite core : P7/4, P9/5,P11/7, P14/8 ,P18/11 ,P22/13, P26/16, P30/19, P36/22, P48/30 .

Toroidal core Type ferrite core  :T9x5x3,T8x4 x4,T9 x5 x5,T10 x6 x5,T12 x6 x4,T14 x8 x7,T14 x9 x5,T16 x9.6 x8,T18 x8 x5,T22 x14 x8,T22 x14 x10 ,T25 x15 x10 ,T25 x15 x12,T29 x19 x15,T31X19 x15, T31X19 x13,T35x22x22,T36X23X19,T38X19X22 .

UU Type ferrite core  :UR15.UR18.5

Welding rod cores YC Type :

YC5X100, YC6X100, YC8X120, YC8X140, YC10X140, YC10X100, YC13X100, YC12X140, YC14X140, YC15X140, YC16X140, YC17X140, YC18X140, YC20X140,

YC22X140, YC24X140, YC25X140, YC28X140, YC30X140, YC32X140, YC35X140,

YC6X200, YC7X200, YC8X200, YC9X200, YC10X200, YC10X160, YC10X180,

YC11X200, YC11X200, YC12X200, YC13X200, YC14X200, YC15X200, YC16X200,

YC17X200, YC18X200, YC20X200, YC21X200, YC25X200, YC30X200, YC32X200,

Welding rod cores YO Type :

YO12x3x140, YO13x3x140, YO13.5x3x140, YO14x3x140, YO15x4x140, YO16x4x140,

YO17x4x140, YO18x4x140,

YO20x6x200, YO22x6x200, YO24x6x200, YO25x6x200, YO28x6x200, YO28x9x200,

YO30x9x200, YO32x10x200, YO35x10x200, YO45x10x120, YO45x20x160, YO50x20x120,

YO60x25x200, YO60x33x150, YO80x33x20, YO100x50x200,


If you have any interest in our products ,please contact us:


FAX:86-29-85401274  Mobile:153 5351 3263

Email:sales@gsmagnetics.com      sales@gstronics.com

 Web:www.gsmagnetics.com

Contact person :Mr Mark Chen(General Manager)

Skype: Mark.chen90
