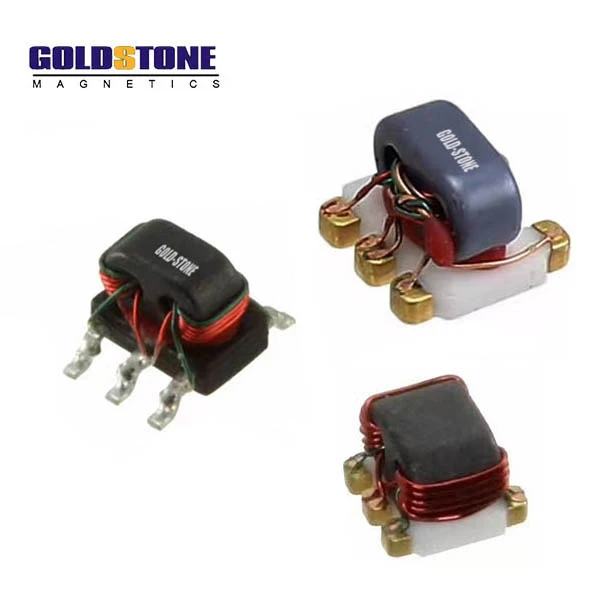

Available in various size,base pin terminal treated, low profile SMD balun coil,RF balun transformer
728757136-2728757137-1

Features:

Available in various size, base pin terminal treated, low profile SMD balun coil

In surface mounting

Pair wire coil for high stability

Low profile

Common mode dual micro-array

Broadband transmission devices, impedance transmission

CT impedance available: 2:1

Characteristic impedance available: 50Ω

Frequency: 2 to 350MHz

RF power: 2.0W

DC current: 30mA

Insertion loss: 1.5dB max

Input return loss: 12.0dB min

Operating temperature range: -40°C to +85°C

Storage temperature range: -55°C to +100°C

Customized specifications are accepted.

RoHS certificate

Materials:

Core: Ni-zn

Wire: QA enameled copper

Base: customized

Terminal: tin copper

Adhesive: epoxy resin

Applications:
double balance mixers, broad band impedance transformers, directional couplers of mixers, matching power combining and splitting, set-top box and cable modem.
